FortiGate 101E has reached end of sale and is no longer available. The replacement model is the FortiGate 120G.
End-of-life 1U enterprise next-generation firewall — the FortiGate 100E with a 480 GB onboard SSD added for local logging and reporting. Built on Fortinet's NP6lite and CP9 security processors with 7.4 Gbps firewall throughput, 2 million concurrent sessions and fourteen GE ports. The FortiGate 101E hardware is no longer sold — FortiGuard and FortiCare renewals remain available below, and the FortiGate 100F is the direct, currently-shipping replacement.
The FortiGate 101E is end of life. The FortiGate 100F is the direct, currently-shipping replacement with about 2.7x the firewall throughput; the FortiGate 120G steps up further with 10 GE and higher session capacity. Same FortiOS and FortiGuard services across the range.
| Firewall throughput (1518 / 512 / 64 byte, UDP) | 7.4 / 7.4 / 4.4 Gbps |
| Firewall latency (64 byte, UDP) | 3 µs |
| Firewall throughput (packets/sec) | 6.6 Mpps |
| Concurrent sessions (TCP) | 2,000,000 |
| New sessions/second (TCP) | 30,000 |
| Firewall policies | 10,000 |
| IPS throughput (Enterprise mix) | 500 Mbps |
| NGFW throughput (Enterprise mix) | 360 Mbps |
| Threat protection throughput (Enterprise mix) | 250 Mbps |
| IPsec VPN throughput (512 byte) | 4 Gbps |
| Gateway-to-gateway IPsec VPN tunnels | 2,000 |
| Client-to-gateway IPsec VPN tunnels | 10,000 |
| SSL-VPN throughput | 250 Mbps |
| Concurrent SSL-VPN users (tunnel mode, rec. max) | 500 |
| SSL inspection throughput (IPS, avg. HTTPS) | 130 Mbps |
| SSL inspection CPS (IPS, avg. HTTPS) | 130 |
| SSL inspection concurrent sessions | 125,000 |
| Application control throughput (HTTP 64K) | 1 Gbps |
| CAPWAP throughput (1444 byte, UDP) | 1.5 Gbps |
| Virtual domains (default / max) | 10 / 10 |
| Managed FortiSwitches | 24 |
| Managed FortiAPs (total / tunnel) | 64 / 32 |
| Maximum FortiTokens | 5,000 |
| Maximum registered FortiClients | 600 |
| High availability | Active-Active, Active-Passive, Clustering |
| Hardware acceleration | Fortinet SPU (NP6lite + CP9) |

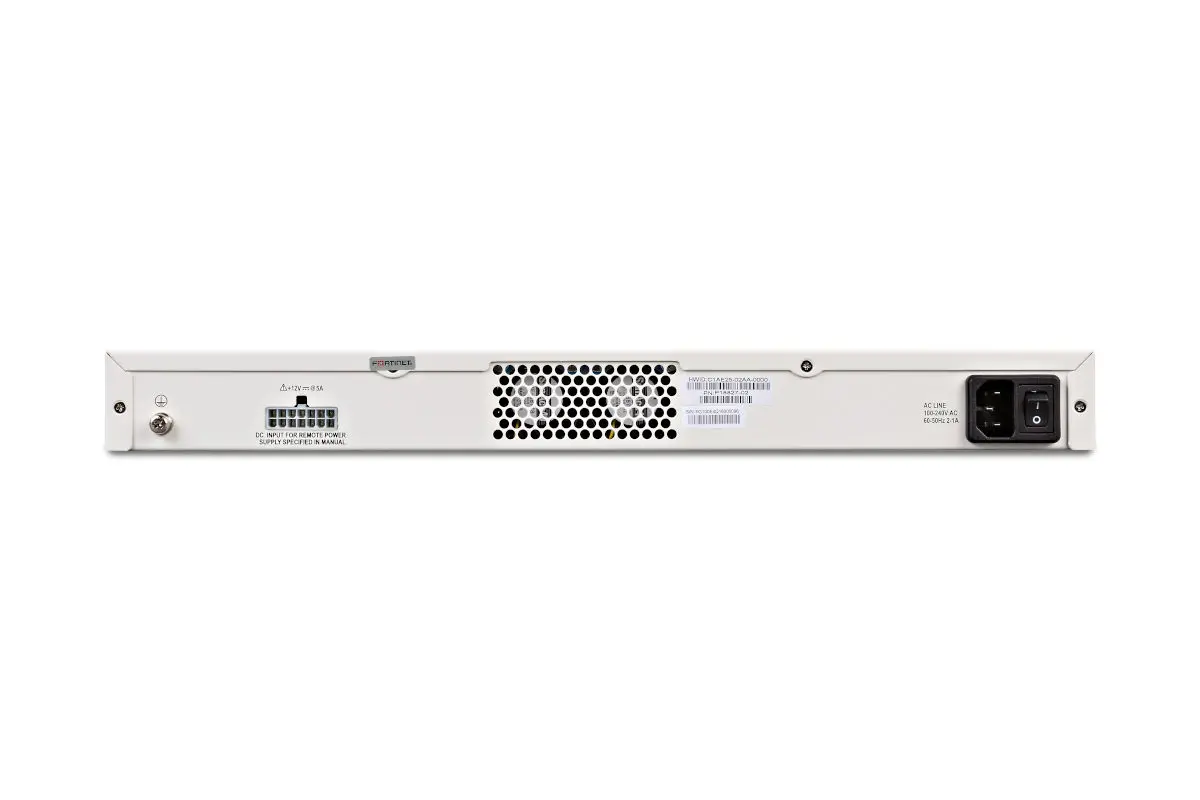

| Interfaces | 14x GE RJ45 ports, 1x GE RJ45 management, 2x GE RJ45 HA, 1x GE RJ45 DMZ, 2x GE RJ45 WAN, 2x GE RJ45/SFP shared-media pairs, 1x USB, 1x console (RJ45) |
| Onboard storage | 1x 480 GB SSD |
| Form factor | 1U rack mount |
| Dimensions (H x W x L) | 1.75 x 17 x 10 in (44.45 x 432 x 254 mm) |
| Weight | 7.28 lbs (3.3 kg) |
| Power required | 100-240V AC, 50/60 Hz |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Storage temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Operating altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15B Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 |
| Power consumption (avg / max) | 24.8 W / 33.8 W (59.2 VA) |
| Heat dissipation | 115.3 BTU/h |
| Noise level | 40.4 dBA |
| Maximum current | 100V / 0.59A, 240V / 0.25A |
| Product lifecycle | End of life (legacy) — renewals available; upgrade path: FortiGate 100F |
Source: official Fortinet FortiGate 100E Series datasheet (FORTIGATE 101E column, FG-100E-DAT-R18). The 100E series shares system performance; the 101E column governs the port, power and storage rows.
Download the full 100E series datasheetSame 100E-series platform and 7.4 Gbps performance across the line. The models differ by port layout (copper vs fiber, PoE) and onboard storage.
FortiGuard and FortiCare renewal subscriptions for installed FortiGate 101E units. Licensing is electronic and delivered worldwide.
Renewal subscriptions for the FortiGate 101E may still be available. Request a quote for current options.
No. The FortiGate 101E (FG-101E) has reached end of life and the hardware is no longer sold. You can still renew FortiGuard security services and FortiCare support for an installed unit, and we can quote the current FortiGate 100F as a direct replacement.
The FortiGate 100F is the direct, currently-shipping replacement — same 1U form factor with about 20 Gbps firewall throughput and 1 Gbps of threat protection, roughly 2.7x and 4x the FortiGate 101E. For more throughput, 10 GE and higher session capacity, step up to the FortiGate 120G.
Yes, while the model is in its renewal window. Choose a FortiGuard + FortiCare renewal bundle (Enterprise, UTP or ATP) above, or renew individual FortiGuard services and FortiCare support. Licensing is delivered electronically worldwide.
The 100E series delivers 7.4 Gbps firewall throughput, 500 Mbps IPS, 360 Mbps NGFW, 250 Mbps threat protection and 4 Gbps IPsec VPN, with 2,000,000 concurrent sessions and 30,000 new sessions per second, accelerated by Fortinet’s NP6lite and CP9 security processors.
The FortiGate 101E is the FortiGate 100E plus a 480 GB onboard SSD for local logging and reporting. Ports and security performance are identical to the 100E; the standard 100E has no internal storage, and the 100EF swaps copper ports for eight GE SFP slots.
