End-of-life compact fanless desktop next-generation firewall for small and remote offices, with five GE RJ45 ports and no fan. It delivers 950 Mbps firewall throughput, 150 Mbps of threat protection and 900,000 concurrent sessions with FortiGuard security services and SD-WAN in FortiOS. The FortiGate 30E hardware is no longer sold — FortiGuard and FortiCare renewals remain available below, and the FortiGate 40F is the direct, currently-shipping replacement.
The FortiGate 30E hardware has reached end of life and is no longer sold. These FortiGuard and FortiCare renewals keep an installed unit licensed and supported. Licensing is delivered electronically worldwide.
| Bundle includes | Enterprise | UTP | ATP |
|---|---|---|---|
| Firewall hardware | ✓ | ✓ | ✓ |
| IPS, malicious/botnet URL | ✓ | ✓ | ✓ |
| Anti-malware (AMP, sandbox, CDR) | ✓ | ✓ | ✓ |
| URL, DNS & video filtering | ✓ | ✓ | — |
| Anti-spam | ✓ | ✓ | — |
| AI-based inline malware prevention | ✓ | — | — |
| Data loss prevention (DLP) | ✓ | — | — |
| Attack surface security | ✓ | — | — |
| FortiCare Premium support | ✓ | ✓ | ✓ |
Item | SKU | Price | ||
|---|---|---|---|---|
 | FC-10-0030E-810-02-12 | List price:CAD$674.02 Our Price:CAD$543.57 | ||
 | FC-10-0030E-950-02-12 | List price:CAD$555.24 Our Price:CAD$447.77 | ||
 | FC-10-0030E-928-02-12 | List price:CAD$356.33 Our Price:CAD$287.37 |
| Bundle includes | Enterprise | UTP | ATP |
|---|---|---|---|
| Firewall hardware | ✓ | ✓ | ✓ |
| IPS, malicious/botnet URL | ✓ | ✓ | ✓ |
| Anti-malware (AMP, sandbox, CDR) | ✓ | ✓ | ✓ |
| URL, DNS & video filtering | ✓ | ✓ | — |
| Anti-spam | ✓ | ✓ | — |
| AI-based inline malware prevention | ✓ | — | — |
| Data loss prevention (DLP) | ✓ | — | — |
| Attack surface security | ✓ | — | — |
| FortiCare Premium support | ✓ | ✓ | ✓ |
Item | SKU | Price | ||
|---|---|---|---|---|
 | FC-10-0030E-100-02-12 | List price:CAD$158.85 Our Price:CAD$148.91 | ||
| | FC-10-0030E-108-02-12 | List price:CAD$158.85 Our Price:CAD$148.91 | ||
| | FC-10-0030E-112-02-12 | List price:CAD$237.55 Our Price:CAD$191.57 | ||
| | FC-10-0030E-159-02-12 | List price:CAD$160.28 Our Price:CAD$150.26 | ||
| | FC-10-0030E-175-02-12 | List price:CAD$158.85 Our Price:CAD$148.91 |

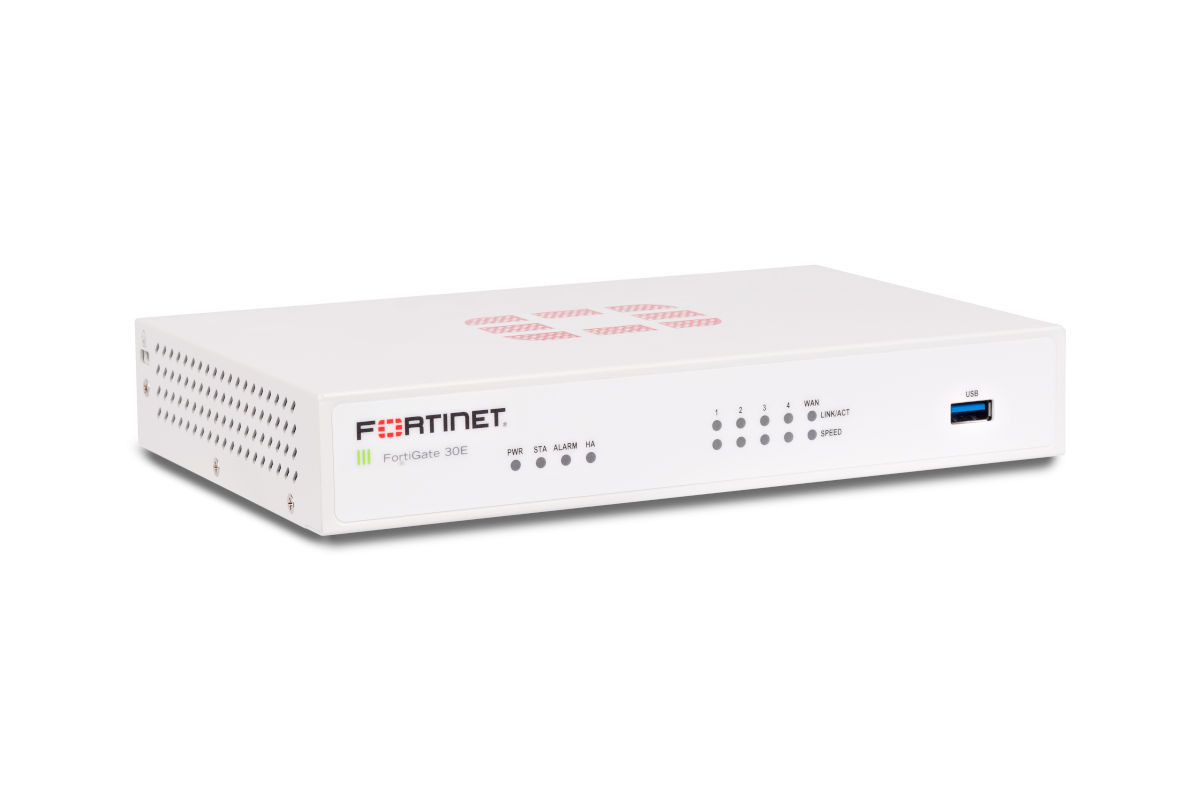

The FortiGate 30E is an end-of-life compact desktop next-generation firewall from Fortinet's 30E series, built for small and remote offices that need enterprise-grade protection in a fanless, copper-only chassis. It delivers 950 Mbps firewall throughput, 200 Mbps NGFW, 150 Mbps of threat protection and 900,000 concurrent sessions across five GE RJ45 ports, with SD-WAN and FortiGuard security in FortiOS.
The 30E reached end of life, so the hardware is no longer sold; you can still renew its FortiGuard security services and FortiCare support to keep an installed unit protected, using the renewal options below. When you are ready to replace it, the currently-shipping FortiGate 40F is the direct successor — roughly 5x the firewall throughput and 4x the threat protection in the same desktop form factor — and the FortiGate 50G steps up further for growing sites. See the upgrade path below.
A quick guide to keeping your existing unit protected, or moving to a current FortiGate model.
| Firewall throughput (1518 / 512 / 64 byte, UDP) | 950 Mbps |
| Firewall latency (64 byte, UDP) | 130 µs |
| Firewall throughput (packets/sec) | 180 Kpps |
| Concurrent sessions (TCP) | 900,000 |
| New sessions/second (TCP) | 15,000 |
| Firewall policies | 5,000 |
| IPS throughput (Enterprise mix) | 300 Mbps |
| NGFW throughput (Enterprise mix) | 200 Mbps |
| Threat protection throughput (Enterprise mix) | 150 Mbps |
| IPsec VPN throughput (512 byte) | 75 Mbps |
| Gateway-to-gateway IPsec VPN tunnels | 200 |
| Client-to-gateway IPsec VPN tunnels | 250 |
| SSL-VPN throughput | 35 Mbps |
| Interfaces | 5x GE RJ45 (1x WAN, 4x internal switch), 1x USB, 1x console (RJ45) |
| Concurrent SSL-VPN users (tunnel mode, rec. max) | 100 |
| SSL inspection throughput (IPS, avg. HTTPS) | 125 Mbps |
| SSL inspection CPS (IPS, avg. HTTPS) | 120 |
| SSL inspection concurrent sessions | 45,000 |
| Application control throughput (HTTP 64K) | 400 Mbps |
| CAPWAP throughput (HTTP 64K) | 850 Mbps |
| Virtual domains (default / max) | 5 / 5 |
| Managed FortiSwitches | 8 |
| Managed FortiAPs (total / tunnel) | 2 / 2 |
| Maximum FortiTokens | 500 |
| Maximum registered FortiClients | 200 |
| High availability | Active-Active, Active-Passive, Clustering |
| Hardware acceleration | Fortinet SPU technology (SoC) |
| Form factor | Compact fanless desktop |
| Dimensions (H x W x L) | 1.61 x 8.27 x 5.24 in (41 x 210 x 133 mm) |
| Weight | 1.5 lbs (0.68 kg) |
| Network interfaces | 5x GE RJ45 (1x WAN, 4x internal switch) |
| Power input | 100-240V AC, 50/60 Hz (external DC adapter) |
| Maximum current | 100V / 0.6A, 240V / 0.4A |
| Power consumption (avg / max) | 9.3 W / 11 W |
| Heat dissipation | 38 BTU/h |
| Noise level | Fanless, 0 dBA |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Storage temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Operating altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs (Firewall, IPsec, IPS, Antivirus, SSL-VPN) |
| Product lifecycle | End of life (legacy) — renewals available; upgrade path: FortiGate 40F |
Source: official Fortinet FortiGate/FortiWiFi 30E datasheet (FORTIGATE 30E column; on-site copy wpdmdl=745). The base FortiGate 30E is copper-only (5x GE RJ45) with no cellular modem.
Download the FortiGate 30E series datasheetSame 30E-series desktop platform and 950 Mbps firewall performance across the line. The base 30E is copper-only; the 3G4G models add a built-in LTE modem.
The FortiGate 30E is end of life. The FortiGate 40F is the direct, currently-shipping replacement with about 5x the firewall throughput and 4x the threat protection; the FortiGate 50G steps up further. Same FortiOS and FortiGuard services across the range.
Every licensing option still available for the FG-30E: FortiGuard + FortiCare renewal bundles, individual FortiGuard services, FortiCare support, and FortiGate Cloud management. Licensing is delivered electronically worldwide.
| Bundle includes | Enterprise | UTP | ATP |
|---|---|---|---|
| Firewall hardware | ✓ | ✓ | ✓ |
| IPS, malicious/botnet URL | ✓ | ✓ | ✓ |
| Anti-malware (AMP, sandbox, CDR) | ✓ | ✓ | ✓ |
| URL, DNS & video filtering | ✓ | ✓ | — |
| Anti-spam | ✓ | ✓ | — |
| AI-based inline malware prevention | ✓ | — | — |
| Data loss prevention (DLP) | ✓ | — | — |
| Attack surface security | ✓ | — | — |
| FortiCare Premium support | ✓ | ✓ | ✓ |
Item | SKU | Price | ||
|---|---|---|---|---|
| | FC-10-0030E-810-02-12 | List price:CAD$674.02 Our Price:CAD$543.57 | ||
| | FC-10-0030E-950-02-12 | List price:CAD$555.24 Our Price:CAD$447.77 | ||
| | FC-10-0030E-928-02-12 | List price:CAD$356.33 Our Price:CAD$287.37 |
| Bundle includes | Enterprise | UTP | ATP |
|---|---|---|---|
| Firewall hardware | ✓ | ✓ | ✓ |
| IPS, malicious/botnet URL | ✓ | ✓ | ✓ |
| Anti-malware (AMP, sandbox, CDR) | ✓ | ✓ | ✓ |
| URL, DNS & video filtering | ✓ | ✓ | — |
| Anti-spam | ✓ | ✓ | — |
| AI-based inline malware prevention | ✓ | — | — |
| Data loss prevention (DLP) | ✓ | — | — |
| Attack surface security | ✓ | — | — |
| FortiCare Premium support | ✓ | ✓ | ✓ |
Item | SKU | Price | ||
|---|---|---|---|---|
| | FC-10-0030E-100-02-12 | List price:CAD$158.85 Our Price:CAD$148.91 | ||
| | FC-10-0030E-108-02-12 | List price:CAD$158.85 Our Price:CAD$148.91 | ||
| | FC-10-0030E-112-02-12 | List price:CAD$237.55 Our Price:CAD$191.57 | ||
| | FC-10-0030E-159-02-12 | List price:CAD$160.28 Our Price:CAD$150.26 | ||
| | FC-10-0030E-175-02-12 | List price:CAD$158.85 Our Price:CAD$148.91 |
Item | SKU | Price | ||
|---|---|---|---|---|
 | FC-10-0030E-247-02-12 | List price:CAD$158.85 Our Price:CAD$148.91 | ||
| | FC-10-0030E-284-02-12 | List price:CAD$198.91 Our Price:CAD$186.48 | ||
| | FC-10-0030E-204-02-12 | List price:CAD$40.07 Our Price:CAD$37.56 |
Item | SKU | Price | ||
|---|---|---|---|---|
 | FC-10-0030E-131-02-12 | List price:CAD$206.07 Our Price:CAD$166.19 | ||
| | FC-10-0030E-288-02-12 | List price:CAD$158.85 Our Price:CAD$148.91 | ||
| | FC-10-0030E-585-02-12 | List price:CAD$237.55 Our Price:CAD$191.57 | ||
| | FC-10-0030E-464-02-12 | List price:CAD$456.50 Our Price:CAD$368.15 | ||
 | FC-10-0030E-189-02-12 | List price:CAD$71.55 Our Price:CAD$67.09 |
The FortiGate 30E is a desktop unit. The most common add-ons are a spare DC power adapter and a wall/DIN mounting kit; browse the accessories hub for the current options.
No. The FortiGate 30E (FG-30E) has reached end of life and the hardware is no longer sold. You can still renew FortiGuard security services and FortiCare support for an installed unit, and we can quote the current FortiGate 40F as a direct replacement.
The FortiGate 40F is the direct, currently-shipping replacement — same compact desktop form factor with 5 Gbps firewall throughput and 600 Mbps of threat protection, roughly 5x and 4x the FortiGate 30E. For more capacity, step up to the FortiGate 50G.
Yes, while the model is in its renewal window. Choose a FortiGuard renewal bundle above, or renew individual FortiGuard services and FortiCare support. Licensing is delivered electronically worldwide.
No. The base FortiGate 30E is copper-only with five GE RJ45 ports. If you need a built-in 3G/4G LTE modem, see the FortiGate 30E-3G4G variants, or the currently-shipping FortiGate 40F-3G4G replacement.
The FortiGate 30E delivers 950 Mbps firewall throughput, 300 Mbps IPS, 200 Mbps NGFW, 150 Mbps threat protection and 75 Mbps IPsec VPN, with 900,000 concurrent sessions and 15,000 new sessions per second, across five GE RJ45 ports in a fanless desktop chassis.
