End-of-life 2U data-center next-generation firewall built on Fortinet's NP6 network processors and CP8 content processor, with 72 Gbps firewall throughput, 11 million concurrent sessions and high-density GE / 10 GE connectivity (4x 10 GE SFP+, 16x GE SFP and 16x GE RJ45). The FortiGate 1200D hardware is no longer sold — FortiGuard and FortiCare renewals are still available below, and the FortiGate 1800F is the direct, currently-shipping replacement.
The FortiGate 1200D hardware has reached end of life and is no longer sold. These FortiGuard and FortiCare renewals keep an installed unit licensed and supported. Licensing is delivered electronically worldwide.
| Bundle includes | Enterprise | UTP | ATP |
|---|---|---|---|
| Firewall hardware | ✓ | ✓ | ✓ |
| IPS, malicious/botnet URL | ✓ | ✓ | ✓ |
| Anti-malware (AMP, sandbox, CDR) | ✓ | ✓ | ✓ |
| URL, DNS & video filtering | ✓ | ✓ | — |
| Anti-spam | ✓ | ✓ | — |
| AI-based inline malware prevention | ✓ | — | — |
| Data loss prevention (DLP) | ✓ | — | — |
| Attack surface security | ✓ | — | — |
| FortiCare Premium support | ✓ | ✓ | ✓ |
Item | SKU | Price | ||
|---|---|---|---|---|
 | FC-10-01200-809-02-12 | List price:CAD$36,536.15 Our Price:CAD$29,784.90 | ||
 | FC-10-01200-950-02-12 | List price:CAD$30,088.59 Our Price:CAD$24,528.75 | ||
 | FC-10-01200-928-02-12 | List price:CAD$19,342.67 Our Price:CAD$15,768.47 |

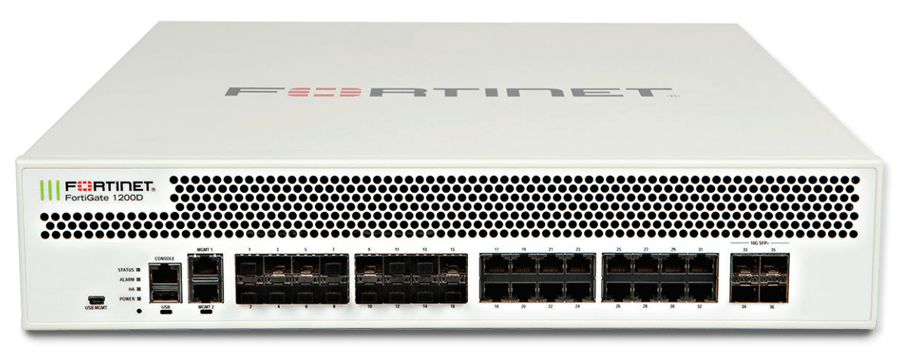

The FortiGate 1200D is an end-of-life 2U data-center next-generation firewall from Fortinet's 1000-series D-generation. Built on multiple NP6 network processors and a CP8 content processor, it delivers 72 Gbps firewall throughput, 6 Gbps NGFW, 4 Gbps threat protection and 11,000,000 concurrent sessions over a high-density mix of 4x 10 GE SFP+, 16x GE SFP and 16x GE RJ45 interfaces. The 1200D reached end of life, so the hardware is no longer sold; you can still renew its FortiGuard security services and FortiCare support to keep an installed unit protected, using the renewal bundles below.
When you are ready to replace it, the currently-shipping FortiGate 1800F is the direct successor in the same data-center class — roughly 2.7x the firewall throughput and nearly 4x the threat protection of the 1200D — and the FortiGate 900G is the current G-generation option with the highest threat-protection performance in this range. See the upgrade path comparison below.
A quick guide to keeping your existing unit protected, or moving to a current FortiGate data-center firewall.
| Firewall throughput (1518 / 512 / 64 byte, UDP) | 72 / 72 / 52 Gbps |
| IPv6 firewall throughput (1518 / 512 / 86 byte, UDP) | 72 / 72 / 52 Gbps |
| Firewall latency (64 byte, UDP) | 3 µs |
| Firewall throughput (packets/sec) | 78 Mpps |
| Concurrent sessions (TCP) | 11,000,000 |
| New sessions/second (TCP) | 290,000 |
| Firewall policies | 100,000 |
| IPS throughput (Enterprise mix) | 6.8 Gbps |
| NGFW throughput (Enterprise mix) | 6 Gbps |
| Threat protection throughput (Enterprise mix) | 4 Gbps |
| IPsec VPN throughput (512 byte) | 48 Gbps |
| Gateway-to-gateway IPsec VPN tunnels | 20,000 |
| Client-to-gateway IPsec VPN tunnels | 100,000 |
| SSL-VPN throughput | 3.6 Gbps |
| Concurrent SSL-VPN users (tunnel mode, rec. max) | 10,000 |
| SSL inspection throughput (IPS, avg. HTTPS) | 5.0 Gbps |
| SSL inspection CPS (IPS, avg. HTTPS) | 2,700 |
| SSL inspection concurrent sessions | 800,000 |
| Application control throughput (HTTP 64K) | 15 Gbps |
| CAPWAP throughput (1444 byte, UDP) | 15 Gbps |
| Virtual domains (default / max) | 10 / 250 |
| Managed FortiSwitches | 128 |
| Managed FortiAPs (total / tunnel) | 4,096 / 2,048 |
| Maximum FortiTokens | 20,000 |
| High availability | Active-Active, Active-Passive, Clustering |
| Hardware acceleration | Fortinet SPU (NP6 + CP8) |
| Interfaces | 4x 10 GE SFP+/GE SFP slots, 16x GE SFP slots, 16x GE RJ45 ports, 2x GE RJ45 management/HA, 1x USB client, 1x USB server, 1x console (RJ45) |
| Onboard storage | 1x 240 GB SSD |
| Form factor | 2U rack mount (EIA / non-EIA) |
| Dimensions (H x W x L) | 3.5 x 17.24 x 21.81 in (89 x 438 x 554 mm) |
| Weight | 32.5 lbs (14.7 kg) |
| Power input | 100-240V AC, 50/60 Hz |
| Maximum current | 100V / 5.3A, 220V / 3A |
| Power consumption (avg / max) | 270 W / 332 W |
| Heat dissipation | 1,132 BTU/h |
| Redundant power supplies | Yes, hot-swappable |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Storage temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise level | 59 dBA |
| Forced airflow | Front to back |
| Operating altitude | Up to 9,843 ft (3,000 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
| Product lifecycle | End of life (legacy) — renewals available; upgrade path: FortiGate 1800F / 900G |
Source: official Fortinet FortiGate 1200D datasheet (FG-1200D-DAT-R29-20210316). Upgrade-path figures from the Fortinet Product Matrix (May 2026).
Download the full FortiGate 1200D datasheetThe FortiGate 1200D is a D-generation 1000-class appliance. The 1500D is the larger D-series sibling, and the 1100E series is the newer-generation successor line in the same data-center class.
The FortiGate 1200D is end of life. The FortiGate 1800F is the direct, currently-shipping replacement with about 2.7x the firewall throughput; the FortiGate 900G is the current G-generation option with the highest threat protection in this range. Same FortiOS and FortiGuard services across the lineup.
Every licensing option still available for the FG-1200D: FortiGuard + FortiCare renewal bundles, FortiCare support, and FortiGate Cloud management. Licensing is delivered electronically worldwide.
| Bundle includes | Enterprise | UTP | ATP |
|---|---|---|---|
| Firewall hardware | ✓ | ✓ | ✓ |
| IPS, malicious/botnet URL | ✓ | ✓ | ✓ |
| Anti-malware (AMP, sandbox, CDR) | ✓ | ✓ | ✓ |
| URL, DNS & video filtering | ✓ | ✓ | — |
| Anti-spam | ✓ | ✓ | — |
| AI-based inline malware prevention | ✓ | — | — |
| Data loss prevention (DLP) | ✓ | — | — |
| Attack surface security | ✓ | — | — |
| FortiCare Premium support | ✓ | ✓ | ✓ |
Item | SKU | Price | ||
|---|---|---|---|---|
| | FC-10-01200-809-02-12 | List price:CAD$36,536.15 Our Price:CAD$29,784.90 | ||
| | FC-10-01200-950-02-12 | List price:CAD$30,088.59 Our Price:CAD$24,528.75 | ||
| | FC-10-01200-928-02-12 | List price:CAD$19,342.67 Our Price:CAD$15,768.47 |
Item | SKU | Price | ||
|---|---|---|---|---|
 | FC-10-01200-247-02-12 | List price:CAD$8,596.74 Our Price:CAD$7,008.21 | ||
| | FC-10-01200-284-02-12 | List price:CAD$10,745.93 Our Price:CAD$8,760.26 | ||
| | FC-10-01200-204-02-12 | List price:CAD$2,149.19 Our Price:CAD$1,771.30 |
Item | SKU | Price | ||
|---|---|---|---|---|
 | FC-10-01200-131-02-12 | List price:CAD$8,596.74 Our Price:CAD$7,008.21 | ||
| | FC-10-01200-288-02-12 | List price:CAD$8,596.74 Our Price:CAD$7,008.21 | ||
| | FC-10-01200-464-02-12 | List price:CAD$24,715.63 Our Price:CAD$20,148.61 | ||
| | FC-10-01200-585-02-12 | List price:CAD$12,895.11 Our Price:CAD$10,512.32 | ||
 | FC-10-01200-189-02-12 | List price:CAD$2,149.19 Our Price:CAD$1,771.30 |
The FortiGate 1200D ships as a 2U rack unit. Populate its GE SFP and 10 GE SFP+ slots with the right transceivers for your fiber or copper runs.
No. The FortiGate 1200D (FG-1200D) has reached end of life and the hardware is no longer sold. You can still renew FortiGuard security services and FortiCare support for an installed unit, and we can quote the current FortiGate 1800F or 900G as a replacement.
The FortiGate 1800F is the direct, currently-shipping replacement in the same 2U data-center class — about 198 Gbps firewall throughput and 15 Gbps of threat protection, roughly 2.7x and nearly 4x the FortiGate 1200D. The FortiGate 900G is the current G-generation option with the highest threat protection in this range.
Yes, while the model is in its renewal window. Choose a FortiGuard + FortiCare renewal bundle (Enterprise, UTP or ATP) above, add FortiCare support, or FortiGate Cloud management. Licensing is delivered electronically worldwide.
The FortiGate 1200D delivers 72 Gbps firewall throughput, 6.8 Gbps IPS, 6 Gbps NGFW, 4 Gbps threat protection and 48 Gbps IPsec VPN, with 11,000,000 concurrent sessions and 290,000 new sessions per second, accelerated by Fortinet’s NP6 and CP8 security processors. It is a 2U appliance with 4x 10 GE SFP+, 16x GE SFP and 16x GE RJ45 interfaces and a 240 GB SSD.
The 1200D has 4x 10 GE SFP+ slots, 16x GE SFP slots and 16x GE RJ45 ports. Use Fortinet FN-TRAN-SFP+SR / SFP+LR modules for 10 GE fiber, and FN-TRAN-SX / LX / GC for 1 GE fiber or copper. No transceivers are included in the box.
