FortiGate 1500D has reached end of sale and is no longer available. The replacement model is the FortiGate 1800F.

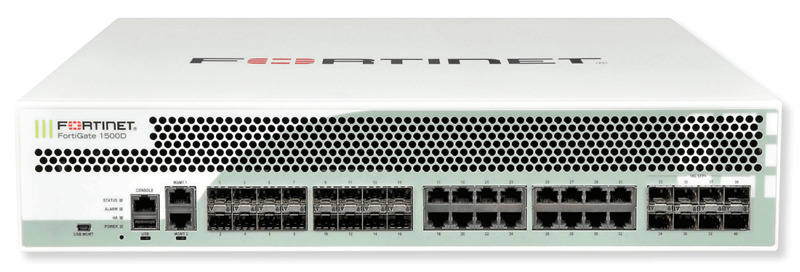

End-of-life 2U data-center next-generation firewall built on Fortinet's NP6 network processors and CP8 content processor, with 80 Gbps firewall throughput, 12 million concurrent sessions and high-density GE / 10 GE connectivity (8x 10 GE SFP+, 16x GE SFP and 16x GE RJ45). The FortiGate 1500D hardware is no longer sold — FortiGuard and FortiCare renewals are still available below, and the FortiGate 1800F is the direct, currently-shipping replacement.
The FortiGate 1500D is end of life. The FortiGate 1800F is the direct, currently-shipping replacement with roughly 2.5x the firewall throughput; the FortiGate 900G is the current G-generation option with the highest threat protection in this range. Same FortiOS and FortiGuard services across the lineup.
| Firewall throughput (1518 / 512 / 64 byte, UDP) | 80 / 80 / 55 Gbps |
| IPv6 firewall throughput (1518 / 512 / 64 byte, UDP) | 80 / 80 / 55 Gbps |
| Firewall latency (64 byte, UDP) | 3 µs |
| Firewall throughput (packets/sec) | 82.5 Mpps |
| Concurrent sessions (TCP) | 12,000,000 |
| New sessions/second (TCP) | 300,000 |
| Firewall policies | 100,000 |
| IPS throughput (Enterprise mix) | 13 Gbps |
| NGFW throughput (Enterprise mix) | 7 Gbps |
| Threat protection throughput (Enterprise mix) | 5 Gbps |
| IPsec VPN throughput (512 byte) | 50 Gbps |
| SSL-VPN throughput | 4 Gbps |
| SSL inspection throughput (IPS, avg. HTTPS) | 5.7 Gbps |
| SSL inspection CPS (IPS, avg. HTTPS) | 3,100 |
| SSL inspection concurrent sessions | 800,000 |
| Application control throughput (HTTP 64K) | 16 Gbps |
| CAPWAP throughput (1444 byte, UDP) | 20 Gbps |
| Virtual domains (default / max) | 10 / 250 |
| High availability | Active-Active, Active-Passive, Clustering |
| Hardware acceleration | Fortinet SPU (NP6 + CP8) |
| Interfaces | 8x 10 GE SFP+ slots, 16x GE SFP slots, 16x GE RJ45 ports, 2x GE RJ45 management/HA, 1x USB client, 1x USB server, 1x console (RJ45) |
| Onboard storage | 2x 240 GB SSD (480 GB) |
| Included transceivers | 2x 10 GE SFP+ SR |
| Form factor | 2U rack mount (EIA / non-EIA) |
| Dimensions (H x W x L) | 3.5 x 17.24 x 21.81 in (89 x 438 x 554 mm) |
| Weight | 32.5 lbs (14.7 kg) |
| Power input | 100-240V AC, 50/60 Hz |
| Power consumption (avg / max) | 336 W / 403.2 W |
| Heat dissipation | 1,375 BTU/h |
| Redundant power supplies | Yes, hot-swappable |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Storage temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise level | 59 dBA |
| Operating altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
| Product lifecycle | End of life (legacy) — renewals available; upgrade path: FortiGate 1800F / 900G |
Source: official Fortinet FortiGate 1500D Series datasheet (FG-1500D column). Upgrade-path figures from the Fortinet Product Matrix (May 2026).
Download the full FortiGate 1500D datasheetThe FortiGate 1500D is a D-generation 1000-class appliance and the larger sibling of the 1200D. The 1100E series is the newer-generation successor line, and the FortiGate 1800F / 900G are the current data-center replacements.
FortiGuard and FortiCare renewal subscriptions for installed FortiGate 1500D units. Licensing is electronic and delivered worldwide.
Renewal subscriptions for the FortiGate 1500D may still be available. Request a quote for current options.
No. The FortiGate 1500D (FG-1500D) has reached end of life and the hardware is no longer sold. You can still renew FortiGuard security services and FortiCare support for an installed unit, and we can quote the current FortiGate 1800F or 900G as a replacement.
The FortiGate 1800F is the direct, currently-shipping replacement in the same 2U data-center class — about 198 Gbps firewall throughput and 15 Gbps of threat protection, roughly 2.5x and 3x the FortiGate 1500D. The FortiGate 900G is the current G-generation option with the highest threat protection in this range.
Yes, while the model is in its renewal window. Choose a FortiGuard + FortiCare renewal bundle above, renew individual FortiGuard services, add FortiCare support, or FortiGate Cloud management. Licensing is delivered electronically worldwide.
The FortiGate 1500D delivers 80 Gbps firewall throughput, 13 Gbps IPS, 7 Gbps NGFW, 5 Gbps threat protection and 50 Gbps IPsec VPN, with 12,000,000 concurrent sessions and 300,000 new sessions per second, accelerated by Fortinet’s NP6 and CP8 security processors. It is a 2U appliance with 8x 10 GE SFP+, 16x GE SFP and 16x GE RJ45 interfaces and dual 240 GB SSDs.
The 1500D has 8x 10 GE SFP+ slots, 16x GE SFP slots and 16x GE RJ45 ports, and ships with two 10 GE SFP+ SR modules. Use Fortinet FN-TRAN-SFP+SR / SFP+LR for additional 10 GE fiber, and FN-TRAN-SX / LX for 1 GE fiber.
