hardened OT/ICS security for industrial, utility and outdoor sites
Every current FortiGate Rugged next-generation firewall in one place. Purpose-built for harsh environments, fanless and wide-temperature with DIN-rail mounting, each one runs the same FortiOS, SD-WAN and FortiGuard security as the rest of the FortiGate family, with embedded 5G/LTE options for sites that have no fixed line. Compare real specs, find the right model fast, and buy from a Canadian Fortinet specialist.
Grouped by series, smallest to largest. Every model is a hardened, fanless FortiGate NGFW rated IP40 with a −40°C to 75°C operating range. Click a series to see its models and pick the right variant. Threat protection is the number to size on, it reflects full inspection running (IPS, antivirus, application control).
| Model | SKU | Key difference | |
|---|---|---|---|
| FortiGate Rugged 50G series1.1 Gbps threat protection · 8 Gbps firewall · IP40 · −40°C to 75°C | |||
| FortiGate Rugged 50G-5G | FGR-50G-5G | Compact rugged, embedded 5G/LTE | View model › |
| FortiGate Rugged 60F series500 Mbps threat protection · 6 Gbps firewall · IP40 · −40°C to 75°C | |||

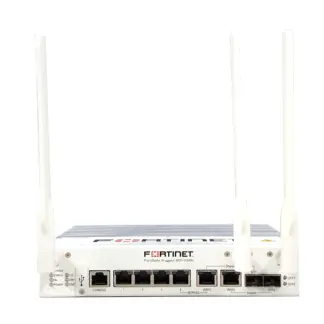

| FortiGate Rugged 60F | FGR-60F | Rugged desktop, 4× GE + shared media | View model › |
| FortiGate Rugged 60F-3G4G | FGR-60F-3G4G | Adds embedded 3G/4G LTE | View model › |
| FortiGate Rugged 60G series1.1 Gbps threat protection · 8 Gbps firewall · IP40 · −40°C to 75°C | |||
| FortiGate Rugged 60G | FGR-60G | G-series, 6× GE + bypass pair | |
| FortiGate Rugged 60G-M12 | FGR-60G-M12 | M12 X-coded ports (rail / vehicle) | |
| FortiGate Rugged 70F series580 Mbps threat protection · 8 Gbps firewall · IP40 · −40°C to 75°C | |||
| FortiGate Rugged 70F | FGR-70F | Rugged, 6× GE + 2 SFP | View model › |
| FortiGate Rugged 70F-3G4G | FGR-70F-3G4G | Adds embedded 3G/4G LTE | View model › |
| FortiGate Rugged 70G series1.3 Gbps threat protection · 8 Gbps firewall · IP40 · −40°C to 75°C | |||
| FortiGate Rugged 70G | FGR-70G | G-series, 6× GE + 2 SFP | View model › |
| FortiGate Rugged 70G-5G | FGR-70G-5G | Adds embedded 5G | |
| FortiGate Rugged 70G-5G-DUAL | FGR-70G-5G-DUAL | Dual 5G modems, 2 SIM slots | View model › |
Looking at the rest of the range? FortiGate firewalls (standard) · FortiWiFi (Wi-Fi 6) · all Fortinet families
No longer sold as new hardware, but your existing FortiGate Rugged units can still be renewed and supported. Keep them current with genuine FortiCare and FortiGuard renewals until the last service date.
Older rugged units such as the FortiGate Rugged 60D, 90D and 100C may have reached End-of-Life, past their last renewal date. We list every retired model, its lifecycle dates, and the recommended current replacement on a dedicated page.
Pick by the environment, the connectivity you have on site, and how much inspected traffic the link carries. These are starting points, not hard limits. If you are between two models, size up so security features have headroom.
Every Fortinet purchase from DataCenter360.ca is backed by hands-on services across the full lifecycle — from rollout to round-the-clock protection.
Hardened firewalls for power, water and grid sites that need wide-temperature, fanless hardware and OT segmentation.
Protocol-aware policy and internal segmentation for plant-floor networks and industrial control systems.
Sealed, vibration-tolerant appliances for remote and hazardous sites, with embedded cellular backhaul.
M12 X-coded locking ports and dual-5G connectivity for rolling stock, roadside cabinets and fleet vehicles.
DIN-rail or wall-mount NGFWs that survive heat, cold and dust where standard appliances cannot.
Built-in SD-WAN with embedded cellular failover keeps remote sites connected and protected on a single box.
A FortiGate Rugged appliance enforces firewall and SD-WAN on its own. To turn on threat protection, you add a FortiGuard bundle, the same subscriptions as any FortiGate. Three tiers, billed per appliance per term (1, 3 or 5 years).
FortiCare support plus core threat protection: IPS, antivirus, application control and inline malware prevention. Good for smaller rugged sites that need solid protection on a budget.
Everything in ATP plus web/DNS filtering, anti-botnet and more FortiGuard services. The common choice for most industrial and remote deployments.
The full FortiGuard catalog, including OT security service, plus SD-WAN underlay, attack-surface and SOC/NOC services. For OT/ICS sites that want everything on.
Not sure which tier? Ask us to scope it for your site, and we will recommend the smallest bundle that covers you.
Fortinet Select Partner and MSSP, FCP-certified. Genuine, factory-sealed hardware and valid licensing.
Brand-new hardware dispatched free across Canada, typically in 0–1 business days.
Subscriptions and renewals delivered electronically worldwide, usually within hours.
Talk to a Fortinet engineer who will point you to the right rugged model, even if it is a smaller one.
Send us your site conditions, connectivity and traffic. We will size it and quote it, usually same day.
It runs the same FortiOS, firewall, SD-WAN and FortiGuard security, but in a hardened chassis built for harsh sites: fanless and sealed, IP40 rated, with a −40°C to 75°C operating range and DIN-rail or wall mounting. Several models add embedded 5G/LTE and an M12 X-coded connector option.
Industrial and outdoor sites where a standard appliance would fail: factory floors, utility substations, oil, gas and mining sites, transportation and rail, and roadside or outdoor cabinets. The wide-temperature, fanless design tolerates heat, cold, dust and vibration.
Yes. FortiGate Rugged is purpose-built for operational technology: it provides protocol-aware controls and internal segmentation for industrial control systems, and joins the Fortinet Security Fabric so OT and IT are managed under one policy model. The Enterprise FortiGuard bundle adds the OT security service.
The 50G-5G, 70G-5G and 70G-5G-DUAL have embedded 5G (the DUAL adds two modems and SIM slots for always-on links), while the 60F-3G4G and 70F-3G4G have embedded 3G/4G LTE. They keep remote and mobile sites online where there is no fixed broadband.
Yes, for threat protection. The appliance handles firewall and SD-WAN on its own, but IPS, antivirus, web filtering, OT security and the rest come from a FortiGuard bundle (ATP, UTP or Enterprise) billed per appliance per term. We can scope the right tier for you.
All hardware is brand-new and factory-sealed, sourced as an Authorized Fortinet Select Partner. Shipping is free across Canada, typically 0–1 business days. Licenses and renewals are delivered electronically worldwide, usually within hours.
DataCenter360.ca is an Authorized Fortinet Select Partner in Canada. Specifications shown are from the FortiGate Rugged Series datasheet and the Fortinet Product Matrix (May 2026) and are locked to each model's datasheet on its product page.
