End-of-life 1U enterprise next-generation firewall built on dual NP6 network processors and the CP8 content processor, with 52 Gbps firewall throughput, 11 million concurrent sessions, sixteen GE RJ45 ports, sixteen GE SFP slots and two 10 GE SFP+ slots. The FortiGate 900D hardware is no longer sold — FortiGuard and FortiCare renewals are still available below, and the FortiGate 900G is the direct, currently-shipping replacement.
The FortiGate 900D hardware has reached end of life and is no longer sold. These FortiGuard and FortiCare renewals keep an installed unit licensed and supported. Licensing is delivered electronically worldwide.
| Bundle includes | Enterprise | UTP | ATP |
|---|---|---|---|
| Firewall hardware | ✓ | ✓ | ✓ |
| IPS, malicious/botnet URL | ✓ | ✓ | ✓ |
| Anti-malware (AMP, sandbox, CDR) | ✓ | ✓ | ✓ |
| URL, DNS & video filtering | ✓ | ✓ | — |
| Anti-spam | ✓ | ✓ | — |
| AI-based inline malware prevention | ✓ | — | — |
| Data loss prevention (DLP) | ✓ | — | — |
| Attack surface security | ✓ | — | — |
| FortiCare Premium support | ✓ | ✓ | ✓ |
Item | SKU | Price | ||
|---|---|---|---|---|
 | FC-10-00900-809-02-12 | List price:CAD$23,764.42 Our Price:CAD$18,761.39 | ||
 | FC-10-00900-950-02-12 | List price:CAD$19,570.70 Our Price:CAD$15,450.56 | ||
 | FC-10-00900-928-02-12 | List price:CAD$12,581.17 Our Price:CAD$9,932.50 |
| Bundle includes | Enterprise | UTP | ATP |
|---|---|---|---|
| Firewall hardware | ✓ | ✓ | ✓ |
| IPS, malicious/botnet URL | ✓ | ✓ | ✓ |
| Anti-malware (AMP, sandbox, CDR) | ✓ | ✓ | ✓ |
| URL, DNS & video filtering | ✓ | ✓ | — |
| Anti-spam | ✓ | ✓ | — |
| AI-based inline malware prevention | ✓ | — | — |
| Data loss prevention (DLP) | ✓ | — | — |
| Attack surface security | ✓ | — | — |
| FortiCare Premium support | ✓ | ✓ | ✓ |
Item | SKU | Price | ||
|---|---|---|---|---|
 | FC-10-00900-100-02-12 | List price:CAD$5,591.63 Our Price:CAD$4,461.40 | ||
| | FC-10-00900-108-02-12 | List price:CAD$5,591.63 Our Price:CAD$4,461.40 | ||
| | FC-10-00900-112-02-12 | List price:CAD$8,387.44 Our Price:CAD$6,621.66 | ||
| | FC-10-00900-159-02-12 | List price:CAD$5,591.63 Our Price:CAD$4,461.40 | ||
| | FC-10-00900-175-02-12 | List price:CAD$5,591.63 Our Price:CAD$4,461.40 |
The FortiGate 900D is an end-of-life 1U rackmount next-generation firewall from Fortinet. Built on the two NP6 processors and CP8 security processors, it delivers 52 Gbps of firewall throughput, 4 Gbps NGFW, 3 Gbps of threat protection and 11,000,000 concurrent sessions over sixteen GE RJ45 ports, sixteen GE SFP slots and two 10 GE SFP+ slots. The 900D reached end of life, so the hardware is no longer sold; you can still renew its FortiGuard security services and FortiCare support to keep an installed unit protected, using the renewal bundles below.
When you are ready to replace it, the currently-shipping FortiGate 900G is the direct successor — roughly 3x the firewall throughput and about 6.5x the threat protection of the 900D in the same 1U form factor, with 25 GE and 100 GE interface options — and the FortiGate 901G adds 2x 480 GB onboard SSDs for local logging and reporting on the same current-gen platform. See the upgrade path comparison below.
A quick guide to keeping your existing unit protected, or moving to a current FortiGate.
| IPv4 firewall throughput (1518 / 512 / 64 byte, UDP) | 52 / 52 / 33 Gbps |
| IPv6 firewall throughput (1518 / 512 / 86 byte, UDP) | 52 / 52 / 33 Gbps |
| Firewall latency (64 byte, UDP) | 3 µs |
| Firewall throughput (packets/sec) | 49.5 Mpps |
| Concurrent sessions (TCP) | 11,000,000 |
| New sessions/second (TCP) | 280,000 |
| Firewall policies | 10,000 |
| IPS throughput (Enterprise mix) | 4.2 Gbps |
| NGFW throughput (Enterprise mix) | 4 Gbps |
| Threat protection throughput (Enterprise mix) | 3 Gbps |
| IPsec VPN throughput (512 byte) | 25 Gbps |
| Gateway-to-gateway IPsec VPN tunnels | 2,000 |
| Client-to-gateway IPsec VPN tunnels | 50,000 |
| SSL-VPN throughput | 3.6 Gbps |
| Concurrent SSL-VPN users (tunnel mode, rec. max) | 10,000 |
| SSL inspection throughput (IPS, avg. HTTPS) | 3.9 Gbps |
| SSL inspection CPS (IPS, avg. HTTPS) | 2,400 |
| SSL inspection concurrent sessions | 800,000 |
| Application control throughput (HTTP 64K) | 10 Gbps |
| CAPWAP throughput (1444 byte, UDP) | 11 Gbps |
| Virtual domains (default / max) | 10 / 10 |
| Managed FortiSwitches | 64 |
| Managed FortiAPs (total / tunnel) | 1,024 / 512 |
| Maximum FortiTokens | 5,000 |
| High availability | Active-Active, Active-Passive, Clustering |
| Hardware acceleration | Fortinet SPU (NP6 + CP8) |

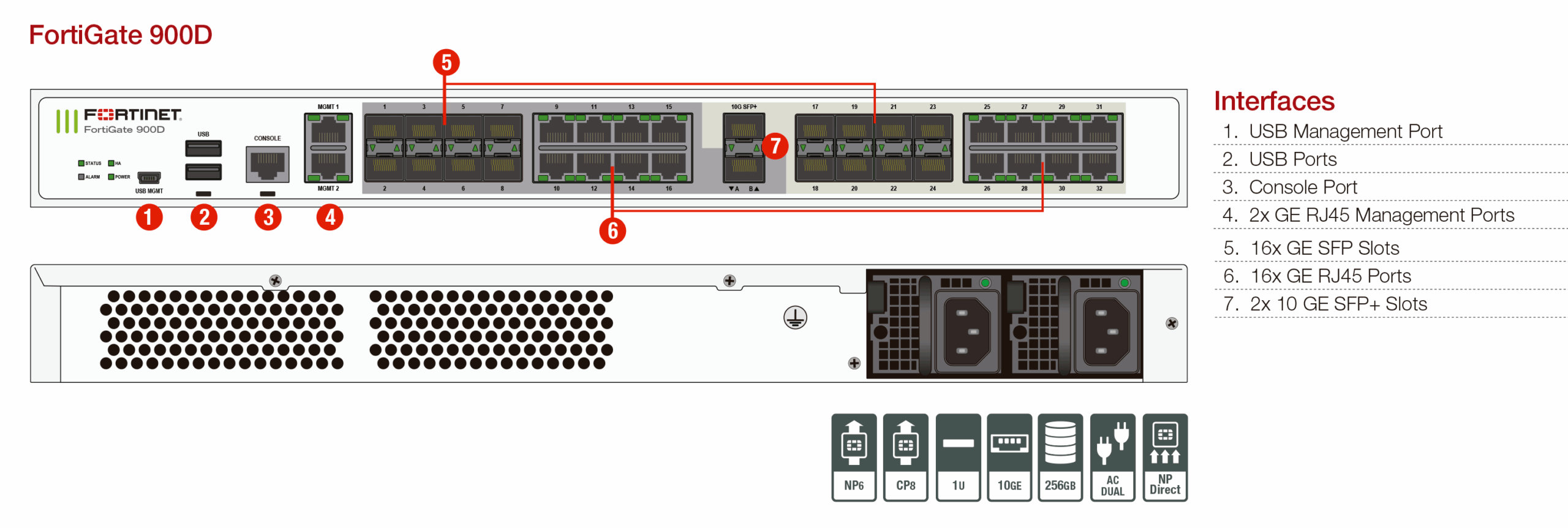

| Interfaces | 2x 10 GE SFP+ slots, 16x GE SFP slots, 16x GE RJ45 ports, 2x GE RJ45 management/HA, 1x USB client + 2x USB server, 1x console (RJ45) |
| Onboard storage | 1x 256 GB SSD |
| Weight | 20.24 lbs (9.18 kg) |
| Form factor | 1U rack mount (EIA / non-EIA) |
| Dimensions (H x W x L) | 1.75 x 17.22 x 18.24 in (44.45 x 437.5 x 463.2 mm) |
| Power input | 100-240V AC, 50/60 Hz, 300 W redundant |
| Redundant power supplies | Dual hot-swap AC PSU (1+1), 80 Plus compliant |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Storage temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% non-condensing |
| Noise level | 49.9 dBA |
| Forced airflow | Side to back |
| Operating altitude | Up to 7,400 ft (2,250 m) |
| Power consumption (avg / max) | 135 W / 187.2 W |
| Maximum current | 100V / 5A, 240V / 3A |
| Heat dissipation | 638.75 BTU/h |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs (Firewall, IPsec, IPS, Antivirus, SSL-VPN); USGv6 / IPv6 |
| Product lifecycle | End of life (legacy) — renewals available; upgrade path: FortiGate 900G |
Source: official Fortinet FortiGate 900D datasheet. Values are Fortinet-published maximums.
Download the FortiGate 900D datasheetThe 900D is end of life. The currently-shipping FortiGate 900G is its direct successor, and the 901G is the 900G with 2x 480 GB onboard SSDs for local logging. Both deliver several times the throughput and sessions of the 900D.
The FortiGate 900D is end of life. The FortiGate 900G is the direct, currently-shipping replacement — roughly 3x the firewall throughput and about 6.5x the threat protection of the 900D in the same 1U form factor, with 25 GE and 100 GE interface options. Same FortiOS and FortiGuard services across the range.
Every licensing option still available for the FG-900D: FortiGuard + FortiCare renewal bundles, individual FortiGuard services, FortiCare support, and FortiGate Cloud management. Licensing is delivered electronically worldwide.
| Bundle includes | Enterprise | UTP | ATP |
|---|---|---|---|
| Firewall hardware | ✓ | ✓ | ✓ |
| IPS, malicious/botnet URL | ✓ | ✓ | ✓ |
| Anti-malware (AMP, sandbox, CDR) | ✓ | ✓ | ✓ |
| URL, DNS & video filtering | ✓ | ✓ | — |
| Anti-spam | ✓ | ✓ | — |
| AI-based inline malware prevention | ✓ | — | — |
| Data loss prevention (DLP) | ✓ | — | — |
| Attack surface security | ✓ | — | — |
| FortiCare Premium support | ✓ | ✓ | ✓ |
Item | SKU | Price | ||
|---|---|---|---|---|
| | FC-10-00900-809-02-12 | List price:CAD$23,764.42 Our Price:CAD$18,761.39 | ||
| | FC-10-00900-950-02-12 | List price:CAD$19,570.70 Our Price:CAD$15,450.56 | ||
| | FC-10-00900-928-02-12 | List price:CAD$12,581.17 Our Price:CAD$9,932.50 |
| Bundle includes | Enterprise | UTP | ATP |
|---|---|---|---|
| Firewall hardware | ✓ | ✓ | ✓ |
| IPS, malicious/botnet URL | ✓ | ✓ | ✓ |
| Anti-malware (AMP, sandbox, CDR) | ✓ | ✓ | ✓ |
| URL, DNS & video filtering | ✓ | ✓ | — |
| Anti-spam | ✓ | ✓ | — |
| AI-based inline malware prevention | ✓ | — | — |
| Data loss prevention (DLP) | ✓ | — | — |
| Attack surface security | ✓ | — | — |
| FortiCare Premium support | ✓ | ✓ | ✓ |
Item | SKU | Price | ||
|---|---|---|---|---|
| | FC-10-00900-100-02-12 | List price:CAD$5,591.63 Our Price:CAD$4,461.40 | ||
| | FC-10-00900-108-02-12 | List price:CAD$5,591.63 Our Price:CAD$4,461.40 | ||
| | FC-10-00900-112-02-12 | List price:CAD$8,387.44 Our Price:CAD$6,621.66 | ||
| | FC-10-00900-159-02-12 | List price:CAD$5,591.63 Our Price:CAD$4,461.40 | ||
| | FC-10-00900-175-02-12 | List price:CAD$5,591.63 Our Price:CAD$4,461.40 |
Item | SKU | Price | ||
|---|---|---|---|---|
 | FC-10-00900-247-02-12 | List price:CAD$5,591.63 Our Price:CAD$4,461.40 | ||
| | FC-10-00900-284-02-12 | List price:CAD$6,989.54 Our Price:CAD$5,576.76 | ||
| | FC-10-00900-204-02-12 | List price:CAD$1,397.91 Our Price:CAD$1,127.34 |
Item | SKU | Price | ||
|---|---|---|---|---|
 | FC-10-00900-131-02-12 | List price:CAD$5,591.63 Our Price:CAD$4,461.40 | ||
| | FC-10-00900-577-02-12 | List price:CAD$8,387.44 Our Price:CAD$6,621.66 | ||
| | FC-10-00900-288-02-12 | List price:CAD$5,591.63 Our Price:CAD$4,461.40 | ||
| | FC-10-00900-585-02-12 | List price:CAD$8,387.44 Our Price:CAD$6,621.66 | ||
| | FC-10-00900-464-02-12 | List price:CAD$16,075.94 Our Price:CAD$12,691.53 | ||
| | FC-10-00900-660-02-12 | List price:CAD$9,843.14 Our Price:CAD$7,770.89 | ||
 | FC-10-00900-189-02-12 | List price:CAD$1,397.91 Our Price:CAD$1,127.34 |
Populate the FortiGate 900D SFP slots with the right 1 GbE or 10 GbE transceiver for your fiber or copper runs.
No. The FortiGate 900D (FG-900D) has reached end of life and the hardware is no longer sold. You can still renew FortiGuard security services and FortiCare support for an installed unit, and we can quote the current FortiGate 900G as a direct replacement.
The FortiGate 900G is the direct, currently-shipping replacement — roughly 3x the firewall throughput and about 6.5x the threat protection of the 900D in the same 1U form factor, with 25 GE and 100 GE interface options. For more headroom you can also look at the FortiGate 901G.
Yes, while the model is in its renewal window. Choose a FortiGuard + FortiCare renewal bundle above, or renew individual FortiGuard services and FortiCare support. Licensing is delivered electronically worldwide.
The 900D delivers 52 Gbps firewall throughput, 4.2 Gbps IPS, 4 Gbps NGFW, 3 Gbps threat protection and 25 Gbps IPsec VPN, with 11,000,000 concurrent sessions and 280,000 new sessions per second, accelerated by Fortinet’s two NP6 processors and CP8 security processors.
The FortiGate 900D is the D-generation 1U appliance with 256 GB onboard storage and dual hot-swap AC power supplies. Its current replacement is the FortiGate 900G; the 901G is the same 900G platform with 2x 480 GB SSDs added for local logging and reporting.
