Higher-density rugged PoE switch for larger industrial sites. Sixteen GE RJ45 PoE ports (360 W budget) plus four 1G/10G SFP/SFP+ uplinks give 112 Gbps of switching with hardware Layer 3 routing, in the same fanless IP40 DIN-rail chassis rated -40 to 75°C.
The configurations most customers buy: the switch on its own, or with FortiCare support. The complete catalog is further down.
| Configuration | Price & action |
|---|---|
| FortiSwitchRugged 216F-POE ruggedized switch. License not included. | View productFSR-216F-POE Original price was: CAD$7,797.24.CAD$5,483.78Current price is: CAD$5,483.78.Add to cart |
Brand-new, sealed · ships same / next business day · price shown live in your selected currency.
| Support | 1 Year | 3 Years | 5 Years |
|---|---|---|---|
| FortiCare Essential Renewal only — not sold with initial hardware purchase. | View productFC-10-SR16F-314-02-12 Original price was: CAD$371.25.CAD$309.38Current price is: CAD$309.38.Add to cart | View productFC-10-SR16F-314-02-36 Original price was: CAD$1,113.74.CAD$928.13Current price is: CAD$928.13.Add to cart | View productFC-10-SR16F-314-02-60 Original price was: CAD$1,856.24.CAD$1,513.24Current price is: CAD$1,513.24.Add to cart |
| FortiCare Premium 24×7 TAC, advanced hardware replacement & firmware updates. Most-purchased tier for new APs. | View productFC-10-SR16F-247-02-12 Original price was: CAD$742.50.CAD$618.75Current price is: CAD$618.75.Add to cart | View productFC-10-SR16F-247-02-36 Original price was: CAD$2,227.49.CAD$1,815.89Current price is: CAD$1,815.89.Add to cart | View productFC-10-SR16F-247-02-60 Original price was: CAD$3,712.48.CAD$3,026.48Current price is: CAD$3,026.48.Add to cart |
FortiCare and subscriptions delivered electronically worldwide · prices shown live in your selected currency · add-to-cart enabled when in stock.

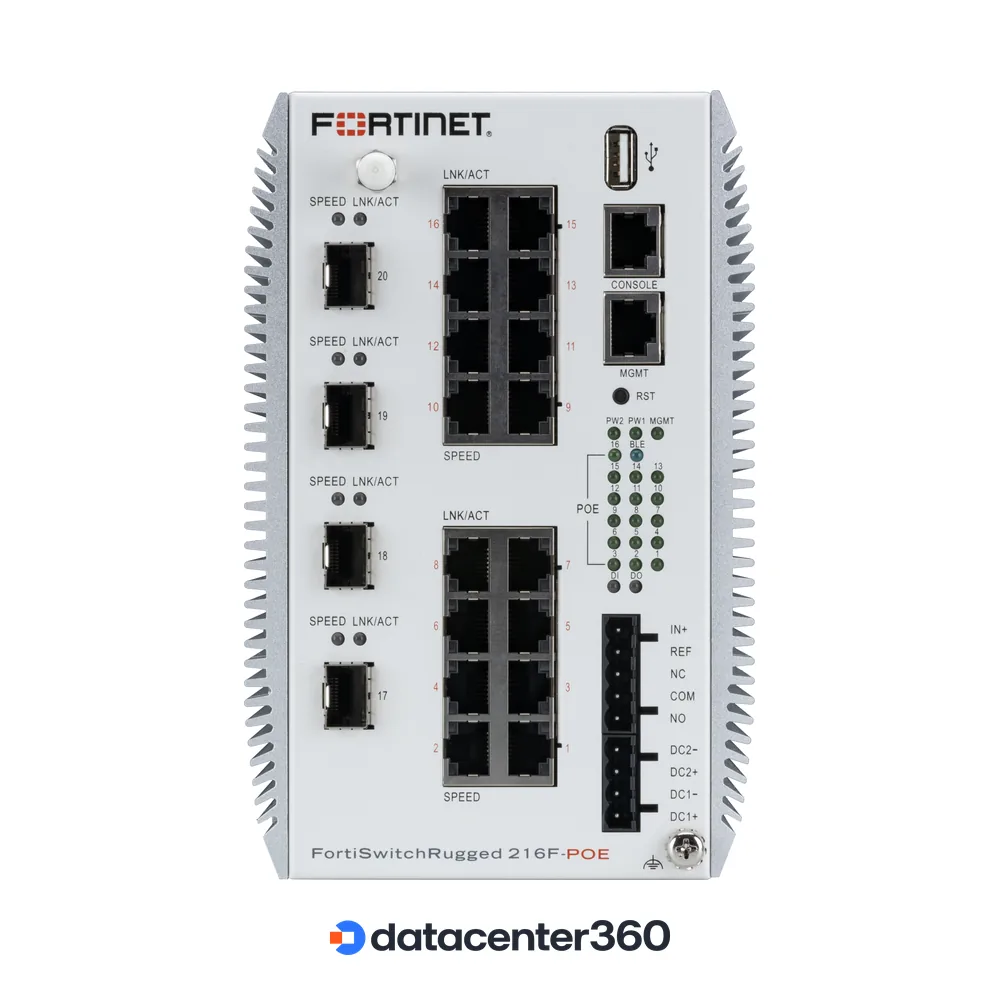

The FortiSwitchRugged 216F-POE (FSR-216F-POE) is a fanless, DIN-rail FortiSwitch from Fortinet's rugged range, built for larger industrial sites that need PoE port density, 10G uplinks and on-switch Layer 3 routing rather than a Layer-2-only edge switch. Like the rest of the FortiSwitch Rugged family it has no moving parts, runs from -40 to 75°C on dual DC power and ships in an IP40 chassis rated for industrial and outdoor mounting. It carries 16x ge rj45 + 4x 1g/10g sfp/sfp+, delivers 112 Gbps of switching capacity at 166 Mpps forwarding with a 16,000-entry MAC table, and switches with sub-microsecond latency. 16 (802.3af/at/bt, up to 90 W/port) give it 360 W of PoE budget to power cameras, FortiAPs and sensors directly from the switch. It is Layer 2/3 capable, with on-switch hardware routing and manages over FortiLink from any FortiGate, so the same Security Fabric policies, VLAN segmentation and network access control used on the rest of the estate extend to the industrial edge with no separate switch console.
Ask AI about the FortiSwitchRugged 216F-POEA quick guide to choosing the right rugged FortiSwitch.
| Total network interfaces | 16x GE RJ45 + 4x 1G/10G SFP/SFP+ |
| PoE ports | 16 (802.3af/at/bt, up to 90 W/port) |
| PoE power budget | 360 W |
| Switching capacity | 112 Gbps |
| Forwarding rate | 166 Mpps |
| MAC address table | 16,000 |
| Switching | Layer 2 / Layer 3 (hardware routing, 16k IPv4 / 8k IPv6 routes) |
| Latency | <1 µs |
| Ruggedization | Fanless IP40 chassis, DIN-rail mount, dual DC power inputs |
| Dimensions (W x H x D) | 7.09 x 4.58 x 6.69 in |
| Weight | 6.6 lbs |
| Power consumption | 35 W (396 W with PoE) |
| Operating temperature | -40 to 75°C |
| Management | FortiLink from any FortiGate, or standalone |
| Security Fabric | Integrated — wired NAC, segmentation, one-console policy |
Source: official Fortinet FortiSwitch Rugged Series datasheet (FSR-216F-POE column).
Download the full datasheet
Every Fortinet purchase from DataCenter360.ca is backed by hands-on services across the full lifecycle — from rollout to round-the-clock protection.
The rugged FortiSwitch line scales by port count, PoE budget and switching capacity, all managed the same way over FortiLink. Pick the smallest model that covers your port and power needs.
| Model | PoE ports | PoE budget | Switching | |
|---|---|---|---|---|
| FortiSwitchRugged 112D-POE | 8 (802.3af/at) | 240 W | 24 Gbps | View → |
| FortiSwitchRugged 108F | None fitted | — | 16 Gbps | View → |
| FortiSwitchRugged 112F-POE | 8 (802.3af/at/bt) | 240 W | 24 Gbps | View → |
| FortiSwitchRugged 216F-POE | 16 (802.3af/at/bt) | 360 W | 112 Gbps | Viewing |
| FortiSwitchRugged 424F-POE | 12 (802.3af/at/bt) | 421 W | 360 Gbps | View → |
Both are hardened, FortiLink-managed FortiSwitch models. Choose the 216F-POE for larger industrial sites that need PoE port density, 10G uplinks and on-switch Layer 3 routing rather than a Layer-2-only edge switch, or the 424F-POE where your site needs a different port count or PoE budget.
Every available SKU for the FSR-216F-POE: switch hardware, FortiCare support and RMA services. In stock, brand new; licensing delivered electronically worldwide.
| Configuration | Price & action |
|---|---|
| FortiSwitchRugged 216F-POE ruggedized switch. License not included. | View productFSR-216F-POE Original price was: CAD$7,797.24.CAD$5,483.78Current price is: CAD$5,483.78.Add to cart |
Brand-new, sealed · ships same / next business day · price shown live in your selected currency.
| Support | 1 Year | 3 Years | 5 Years |
|---|---|---|---|
| FortiCare Essential Renewal only — not sold with initial hardware purchase. | View productFC-10-SR16F-314-02-12 Original price was: CAD$371.25.CAD$309.38Current price is: CAD$309.38.Add to cart | View productFC-10-SR16F-314-02-36 Original price was: CAD$1,113.74.CAD$928.13Current price is: CAD$928.13.Add to cart | View productFC-10-SR16F-314-02-60 Original price was: CAD$1,856.24.CAD$1,513.24Current price is: CAD$1,513.24.Add to cart |
| FortiCare Premium 24×7 TAC, advanced hardware replacement & firmware updates. Most-purchased tier for new APs. | View productFC-10-SR16F-247-02-12 Original price was: CAD$742.50.CAD$618.75Current price is: CAD$618.75.Add to cart | View productFC-10-SR16F-247-02-36 Original price was: CAD$2,227.49.CAD$1,815.89Current price is: CAD$1,815.89.Add to cart | View productFC-10-SR16F-247-02-60 Original price was: CAD$3,712.48.CAD$3,026.48Current price is: CAD$3,026.48.Add to cart |
| FortiCare Elite Priority TAC queue, quarterly review & dedicated team. | View productFC-10-SR16F-284-02-12 Original price was: CAD$1,113.74.CAD$928.13Current price is: CAD$928.13.Add to cart | View productFC-10-SR16F-284-02-36 Original price was: CAD$3,341.23.CAD$2,723.82Current price is: CAD$2,723.82.Add to cart | View productFC-10-SR16F-284-02-60 Original price was: CAD$5,568.71.CAD$4,539.71Current price is: CAD$4,539.71.Add to cart |
| FortiCare Premium → Elite Upgrade Step an existing FortiCare Premium contract up to Elite mid-term. | View productFC-10-SR16F-204-02-12 Original price was: CAD$371.25.CAD$309.38Current price is: CAD$309.38.Add to cart | View productFC-10-SR16F-204-02-36 Original price was: CAD$1,113.74.CAD$928.13Current price is: CAD$928.13.Add to cart | View productFC-10-SR16F-204-02-60 Original price was: CAD$1,856.24.CAD$1,513.24Current price is: CAD$1,513.24.Add to cart |
| RMA | 1 Year | 3 Years | 5 Years |
|---|---|---|---|
| Next-Calendar-Day RMA Replacement unit dispatched the next calendar day. | View productFC-10-SR16F-210-02-12 Original price was: CAD$371.25.CAD$309.38Current price is: CAD$309.38.Add to cart | View productFC-10-SR16F-210-02-36 Original price was: CAD$1,113.74.CAD$928.13Current price is: CAD$928.13.Add to cart | View productFC-10-SR16F-210-02-60 Original price was: CAD$1,856.24.CAD$1,513.24Current price is: CAD$1,513.24.Add to cart |
| 4-Hour Delivery RMA Advance replacement delivered within 4 hours. | View productFC-10-SR16F-211-02-12 Original price was: CAD$890.99.CAD$742.50Current price is: CAD$742.50.Add to cart | View productFC-10-SR16F-211-02-36 Original price was: CAD$2,672.98.CAD$2,179.06Current price is: CAD$2,179.06.Add to cart | View productFC-10-SR16F-211-02-60 Original price was: CAD$4,454.97.CAD$3,631.77Current price is: CAD$3,631.77.Add to cart |
| 4-Hour Delivery + Onsite RMA 4-hour part plus a Fortinet onsite engineer dispatched. | View productFC-10-SR16F-212-02-12 Original price was: CAD$1,633.49.CAD$1,331.65Current price is: CAD$1,331.65.Add to cart | View productFC-10-SR16F-212-02-36 Original price was: CAD$4,900.47.CAD$3,994.94Current price is: CAD$3,994.94.Add to cart | View productFC-10-SR16F-212-02-60 Original price was: CAD$8,167.45.CAD$6,516.58Current price is: CAD$6,516.58.Add to cart |
| Secure RMA Keep your failed unit — no return of the defective AP required. | View productFC-10-SR16F-301-02-12 Original price was: CAD$556.88.CAD$464.07Current price is: CAD$464.07.Add to cart | View productFC-10-SR16F-301-02-36 Original price was: CAD$1,670.62.CAD$1,361.92Current price is: CAD$1,361.92.Add to cart | View productFC-10-SR16F-301-02-60 Original price was: CAD$2,784.36.CAD$2,269.86Current price is: CAD$2,269.86.Add to cart |
FortiCare and subscriptions delivered electronically worldwide · prices shown live in your selected currency · add-to-cart enabled when in stock.
Uplink transceivers and direct-attach cables for the SFP ports.
The FortiSwitchRugged 216F-POE is a current-generation ruggedized FortiSwitch, actively sold and supported with full FortiCare entitlement, not on an end-of-order schedule.
A fanless IP40 chassis, DIN-rail mount and dual DC power inputs let it run at -40 to 75°C in industrial, outdoor and OT environments where a standard access switch fails. There are no fans or moving parts to service.
Yes. 16 (802.3af/at/bt, up to 90 W/port), with a 360 W total budget — enough for cameras, FortiAPs and other PoE devices at the industrial edge.
Over FortiLink from any FortiGate, so switching, Wi-Fi and security share one console with no separate controller. It also runs standalone if FortiLink is not in use.
Hardware ships within Canada only. FortiCare support and RMA services for the FSR-216F-POE are delivered electronically and are available worldwide — you do not need to be in Canada to buy or renew FortiCare from DataCenter360.ca.
