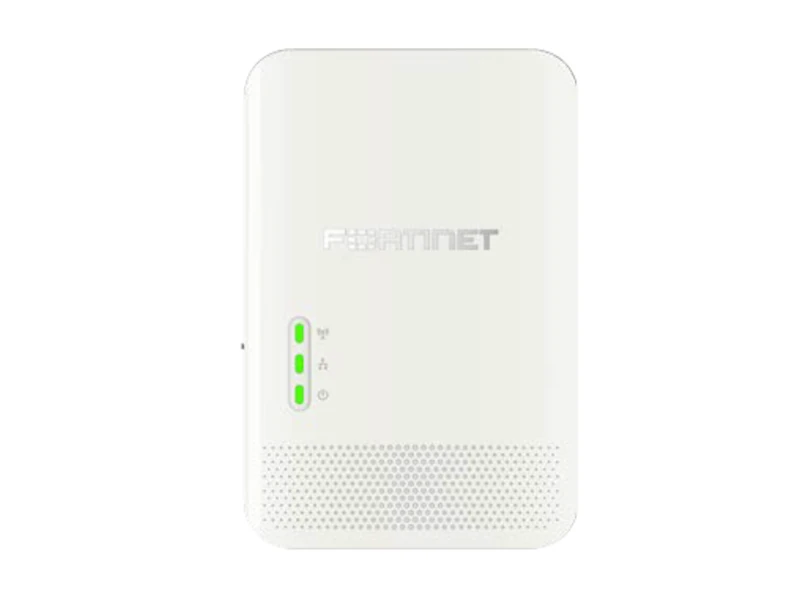

Fortinet FortiAP-23JK Wi-Fi 7 Wall Plate Access Point (FAP-23JK-A)

Wall coverage without a ceiling drop. The FortiAP-23JK-A mounts directly on a standard single-gang outlet box, putting a Wi-Fi 7 radio right at desk level where users actually sit. With simultaneous 2.4, 5, and 6 GHz coverage, a 10G uplink, and a downstream PoE port for a desk phone or IoT sensor, it replaces a ceiling AP and a PoE injector in one clean box.

What you get with the FAP-23JK-A

Three concurrent client-serving radios handle 802.11be (Wi-Fi 7) on every band. A fourth radio is dedicated to BLE and ZigBee for location services and IoT beaconing. The 10G multigigabit WAN port draws 802.3bt PoE from a compatible switch or injector; LAN3 provides 802.3af PSE to power a downstream device. A wall-mount kit ships in the box, and a tabletop stand is available as an option.

Where the FAP-23JK-A fits

Hotel rooms and open-plan offices with one user per outlet box are the natural target. Each AP handles up to 512 clients per radio, background-scans all three bands for rogue devices and WIPS at the same time as serving traffic, and passes a PoE signal out to a desk phone or badge reader. The 10G uplink means the AP won’t bottleneck on a modern distribution switch even during peak Wi-Fi 7 sessions.

The 6 GHz band requires regional regulatory approval in Canada — confirm your deployment meets that requirement before enabling it. Region Code A covers Canada and the US market.

Hardware alone vs FortiCare Premium

The hardware ships functional, managed by a FortiGate or FortiEdge Cloud controller. FortiCare Premium (FC-10-P23JK-247-02-12) adds 24/7 TAC support, firmware access, and hardware replacement coverage. For a production deployment, adding FortiCare Premium for the term you plan to run the AP avoids out-of-pocket TAC fees and keeps the unit on a supported firmware track. FortiGuard bundle subscriptions (UTP/Enterprise) are not yet available for this model.

Who deploys this AP

IT teams rolling out Wi-Fi 7 in hotels, corporate offices with assigned desks, and clinics benefit from wall plate form factor. The unit keeps cabling contained at the outlet, avoids the visual impact of a ceiling drop, and lets network staff deploy closer to the endpoint without running extra cable to a dedicated ceiling mount.

Moving up from the FAP-23JK

If coverage requirements outgrow a wall plate footprint, the FAP-231K-A is the next step: a ceiling-mount Wi-Fi 7 AP in the same K-series generation. For branch offices where a FortiWiFi all-in-one is a better fit than a standalone AP, the FWF-50G-A combines a FortiGate firewall with integrated Wi-Fi 6 in a single desktop unit.

Buying from DataCenter360.ca

Fortinet access points ship quickly from Canadian inventory. The FAP-23JK-A is stocked and ready, with free same-day or next-business-day shipping anywhere in Canada. DataCenter360.ca is an authorized Fortinet Select Partner and MSSP, so you get proper partner pricing, legitimate licensing, and Fortinet TAC-eligible support on every order. If you have questions about injector selection, controller licensing, or volume pricing, reach out directly.
