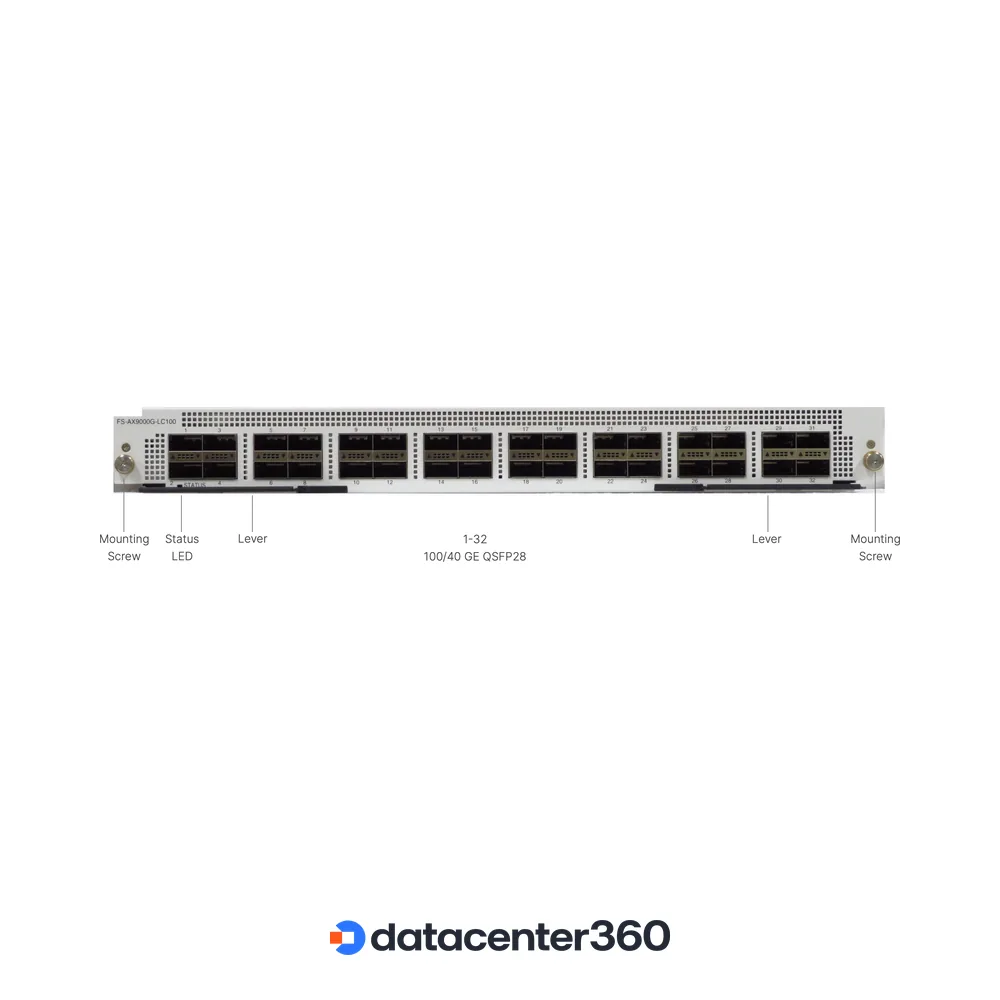

32-port 100 gigabit line card for the FortiSwitch AX9000G chassis. Thirty-two QSFP28 ports at 100 or 40 GE with 82 MB of packet buffers — 128 ports of 100 GE in a four-slot chassis, and the card behind the family's 12.8 Tbps and 5,253 Mpps figures.
The configurations most customers buy. The complete catalog is further down.
| Configuration | Price & action |
|---|---|
| FortiSwitch AX9000G-LC100. Part of the FortiSwitch AX9000G modular chassis family. | View productFS-AX9000G-LC100 Original price was: CAD$59,738.44.CAD$41,110.32Current price is: CAD$41,110.32.Add to cart |
Brand-new, sealed · ships same / next business day · price shown live in your selected currency.
| Support | 1 Year | 3 Years | 5 Years |
|---|---|---|---|
| FortiCare Essential Renewal only — not sold with initial hardware purchase. | View productFC-10-YAKG6-314-02-12 Original price was: CAD$2,633.94.CAD$2,147.24Current price is: CAD$2,147.24.Add to cart | View productFC-10-YAKG6-314-02-36 Original price was: CAD$7,901.82.CAD$6,304.64Current price is: CAD$6,304.64.Add to cart | View productFC-10-YAKG6-314-02-60 Original price was: CAD$13,169.70.CAD$10,507.74Current price is: CAD$10,507.74.Add to cart |
| FortiCare Premium 24×7 TAC, advanced hardware replacement & firmware updates. Most-purchased tier for new APs. | View productFC-10-YAKG6-247-02-12 Original price was: CAD$5,267.88.CAD$4,294.47Current price is: CAD$4,294.47.Add to cart | View productFC-10-YAKG6-247-02-36 Original price was: CAD$15,803.64.CAD$12,609.30Current price is: CAD$12,609.30.Add to cart | View productFC-10-YAKG6-247-02-60 Original price was: CAD$26,339.41.CAD$21,015.49Current price is: CAD$21,015.49.Add to cart |
FortiCare and subscriptions delivered electronically worldwide · prices shown live in your selected currency · add-to-cart enabled when in stock.
The FS-AX9000G-LC100 is the 100 gigabit line card for the FortiSwitch AX9000G chassis family. Thirty-two QSFP28 ports run at 100 or 40 GE, with 82 MB of packet buffers behind them. Four of these cards in an FS-AX9004G give 128 ports of 100 GE from a single 11RU chassis.
This is the configuration Fortinet uses for the family's headline performance numbers: 12.8 Tbps of duplex switching capacity and 5,253 Mpps of forwarding, measured with one supervisor module and four LC100 cards. Latency across the chassis is under 4.3 microseconds.
The card is data only, with no Power over Ethernet, and is hot swappable. It fits both the four-slot FS-AX9004G and the eight-slot FS-AX9008G and occupies one line-card slot. For 400 GE, the LC400 card provides eight QSFP-DD ports.
Ask AI about the FortiSwitch AX9000G-LC100A quick guide to choosing the right AX9000G component.
| Line card | Ports | Speeds | PoE | |
|---|---|---|---|---|
| AX9000G-LC10P | 48× RJ45 + 2× SFP+ | 1/2.5/5/10 GE | 802.3bt, 4,320 W | View → |
| AX9000G-LC10S | 48× SFP+ + 2× SFP+ | 1/10 GE | — | View → |
| AX9000G-LC25 | 48× SFP28 + 4× QSFP28 | 10/25 GE + 40/100 GE | — | View → |
| AX9000G-LC100 | 32× QSFP28 | 40/100 GE | — | Viewing |
| AX9000G-LC400 | 8× QSFP-DD | 40/100/400 GE | — | View → |
All five line cards fit both the FS-AX9004G and the FS-AX9008G and occupy one line-card slot each. Only the LC10P has Power over Ethernet.
| Chassis compatibility | FS-AX9004G and FS-AX9008G — occupies 1 line-card slot |
| Ports | 32× 100 GE QSFP28 / 40 GE QSFP+ |
| PoE | None — data only |
| Maximum per chassis | 128× 100 GE ports (4× LC100 in an FS-AX9004G) |
| Packet buffers | 82 MB |
| Onboard storage | 20 GB SSD |
| Forward error correction | Supported |
| Chassis performance with this card | 12.8 Tbps and 5,253 Mpps with 1 supervisor and 4× LC100 |
| Hot swap | Yes |
| Dimensions (H × D × W) | 49.0 × 496.2 × 436 mm (2.0 × 19.6 × 17.2 in) |
| Weight | 7.8 kg (17.2 lb) |
| Maximum power consumption | 772 W |
| Heat dissipation | 2,636.1 BTU/h |
Source: official Fortinet FortiSwitch-AX9000G Series datasheet, December 2025.
Every Fortinet purchase from DataCenter360.ca is backed by hands-on services across the full lifecycle — from rollout to round-the-clock protection.
Every part of the AX9000G family is ordered separately, so it is worth checking what fits where before you buy.
| Line card | Ports | Speeds | PoE | |
|---|---|---|---|---|
| AX9000G-LC10P | 48× RJ45 + 2× SFP+ | 1/2.5/5/10 GE | 802.3bt, 4,320 W | View → |
| AX9000G-LC10S | 48× SFP+ + 2× SFP+ | 1/10 GE | — | View → |
| AX9000G-LC25 | 48× SFP28 + 4× QSFP28 | 10/25 GE + 40/100 GE | — | View → |
| AX9000G-LC100 | 32× QSFP28 | 40/100 GE | — | Viewing |
| AX9000G-LC400 | 8× QSFP-DD | 40/100/400 GE | — | View → |
All five line cards fit both the FS-AX9004G and the FS-AX9008G and occupy one line-card slot each. Only the LC10P has Power over Ethernet.
The AX9000G family is two chassis, one supervisor module and five line cards, plus fan modules and power supplies. Everything is hot swappable.
Every AX9000G line card, side by side. Any combination fits either chassis.
Every available SKU for the FS-AX9000G-LC100. In stock, brand new; support and licensing delivered electronically worldwide.
| Configuration | Price & action |
|---|---|
| FortiSwitch AX9000G-LC100. Part of the FortiSwitch AX9000G modular chassis family. | View productFS-AX9000G-LC100 Original price was: CAD$59,738.44.CAD$41,110.32Current price is: CAD$41,110.32.Add to cart |
Brand-new, sealed · ships same / next business day · price shown live in your selected currency.
| Support | 1 Year | 3 Years | 5 Years |
|---|---|---|---|
| FortiCare Essential Renewal only — not sold with initial hardware purchase. | View productFC-10-YAKG6-314-02-12 Original price was: CAD$2,633.94.CAD$2,147.24Current price is: CAD$2,147.24.Add to cart | View productFC-10-YAKG6-314-02-36 Original price was: CAD$7,901.82.CAD$6,304.64Current price is: CAD$6,304.64.Add to cart | View productFC-10-YAKG6-314-02-60 Original price was: CAD$13,169.70.CAD$10,507.74Current price is: CAD$10,507.74.Add to cart |
| FortiCare Premium 24×7 TAC, advanced hardware replacement & firmware updates. Most-purchased tier for new APs. | View productFC-10-YAKG6-247-02-12 Original price was: CAD$5,267.88.CAD$4,294.47Current price is: CAD$4,294.47.Add to cart | View productFC-10-YAKG6-247-02-36 Original price was: CAD$15,803.64.CAD$12,609.30Current price is: CAD$12,609.30.Add to cart | View productFC-10-YAKG6-247-02-60 Original price was: CAD$26,339.41.CAD$21,015.49Current price is: CAD$21,015.49.Add to cart |
| FortiCare Elite Priority TAC queue, quarterly review & dedicated team. | View productFC-10-YAKG6-284-02-12 Original price was: CAD$7,901.82.CAD$6,304.64Current price is: CAD$6,304.64.Add to cart | View productFC-10-YAKG6-284-02-36 Original price was: CAD$23,705.47.CAD$18,913.94Current price is: CAD$18,913.94.Add to cart | View productFC-10-YAKG6-284-02-60 Original price was: CAD$39,509.11.CAD$31,523.22Current price is: CAD$31,523.22.Add to cart |
| FortiCare Premium → Elite Upgrade Step an existing FortiCare Premium contract up to Elite mid-term. | View productFC-10-YAKG6-204-02-12 Original price was: CAD$2,633.94.CAD$2,147.24Current price is: CAD$2,147.24.Add to cart | View productFC-10-YAKG6-204-02-36 Original price was: CAD$7,901.82.CAD$6,304.64Current price is: CAD$6,304.64.Add to cart | View productFC-10-YAKG6-204-02-60 Original price was: CAD$13,169.70.CAD$10,507.74Current price is: CAD$10,507.74.Add to cart |
| RMA | 1 Year | 3 Years | 5 Years |
|---|---|---|---|
| Next-Calendar-Day RMA Replacement unit dispatched the next calendar day. | View productFC-10-YAKG6-210-02-12 Original price was: CAD$2,633.94.CAD$2,147.24Current price is: CAD$2,147.24.Add to cart | View productFC-10-YAKG6-210-02-36 Original price was: CAD$7,901.82.CAD$6,304.64Current price is: CAD$6,304.64.Add to cart | View productFC-10-YAKG6-210-02-60 Original price was: CAD$13,169.70.CAD$10,507.74Current price is: CAD$10,507.74.Add to cart |
| 4-Hour Delivery RMA Advance replacement delivered within 4 hours. | View productFC-10-YAKG6-211-02-12 Original price was: CAD$6,321.46.CAD$5,043.71Current price is: CAD$5,043.71.Add to cart | View productFC-10-YAKG6-211-02-36 Original price was: CAD$18,964.37.CAD$15,131.14Current price is: CAD$15,131.14.Add to cart | View productFC-10-YAKG6-211-02-60 Original price was: CAD$31,607.29.CAD$25,218.58Current price is: CAD$25,218.58.Add to cart |
| 4-Hour Delivery + Onsite RMA 4-hour part plus a Fortinet onsite engineer dispatched. | View productFC-10-YAKG6-212-02-12 Original price was: CAD$11,589.34.CAD$9,246.82Current price is: CAD$9,246.82.Add to cart | View productFC-10-YAKG6-212-02-36 Original price was: CAD$34,768.02.CAD$27,740.44Current price is: CAD$27,740.44.Add to cart | View productFC-10-YAKG6-212-02-60 Original price was: CAD$57,946.69.CAD$46,234.06Current price is: CAD$46,234.06.Add to cart |
| Secure RMA Keep your failed unit — no return of the defective AP required. | View productFC-10-YAKG6-301-02-12 Original price was: CAD$3,950.91.CAD$3,220.85Current price is: CAD$3,220.85.Add to cart | View productFC-10-YAKG6-301-02-36 Original price was: CAD$11,852.73.CAD$9,456.96Current price is: CAD$9,456.96.Add to cart | View productFC-10-YAKG6-301-02-60 Original price was: CAD$19,754.55.CAD$15,761.62Current price is: CAD$15,761.62.Add to cart |
FortiCare and subscriptions delivered electronically worldwide · prices shown live in your selected currency · add-to-cart enabled when in stock.
The other parts you need to put this component into service.
A line card does not work on its own. It needs an AX9000G chassis with a supervisor module, fan modules and power supplies. The optics and cables below match this card's ports.
One hundred and twenty-eight. Four LC100 cards in a four-slot FS-AX9004G give 32 QSFP28 ports each. The eight-slot FS-AX9008G takes eight line cards.
Yes. Fortinet measures the family’s 12.8 Tbps duplex switching capacity and 5,253 Mpps forwarding rate with one supervisor module and four LC100 cards installed. The 25.6 Tbps active-active figure is listed as planned firmware, not something available today.
Yes. The 32 QSFP28 ports accept 100 GE QSFP28 or 40 GE QSFP+ optics, so existing 40 GE links can terminate on the same card as new 100 GE ones.
Yes. A line card does not work on its own — it needs an AX9004G or AX9008G chassis with at least one FS-AX9000G-SUP supervisor module, fan modules and power supplies. Ask us to quote the complete system if you are building a chassis from scratch.
No. The AX9000G family is managed through FortiSwitchNMS. Fortinet has stated that Security Fabric integration through FortiLink is planned for this platform, but it is not available today.
