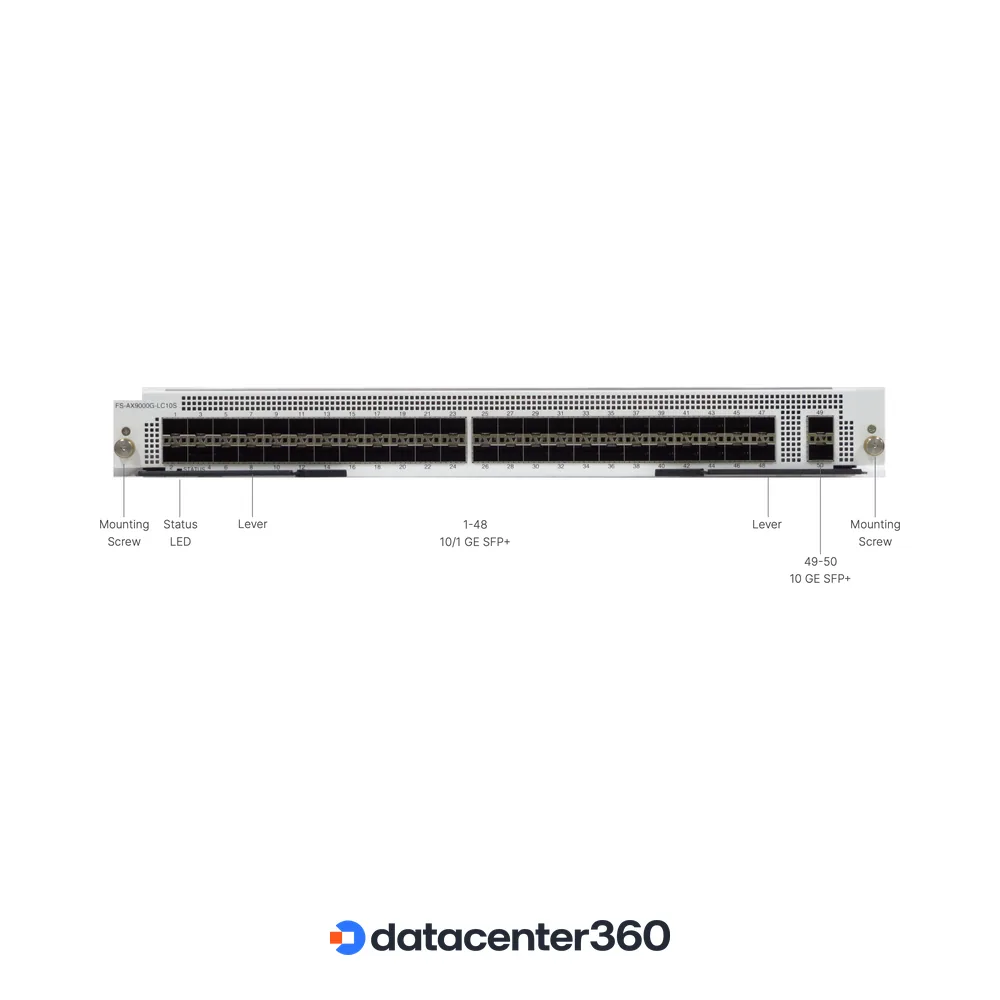

48-port 10 GE fibre line card for the FortiSwitch AX9000G chassis. Forty-eight SFP+/SFP ports that take 10 GE or 1 GE optics, plus two dedicated 10 GE SFP+ uplinks. The highest 10 GE port count in the family — 200 ports in a four-slot chassis.
The configurations most customers buy. The complete catalog is further down.
| Configuration | Price & action |
|---|---|
| FortiSwitch AX9000G-LC10S. Part of the FortiSwitch AX9000G modular chassis family. | View productFS-AX9000G-LC10S Original price was: CAD$39,090.80.CAD$26,901.19Current price is: CAD$26,901.19.Add to cart |
Brand-new, sealed · ships same / next business day · price shown live in your selected currency.
| Support | 1 Year | 3 Years | 5 Years |
|---|---|---|---|
| FortiCare Essential Renewal only — not sold with initial hardware purchase. | View productFC-10-YAKG4-314-02-12 Original price was: CAD$1,861.47.CAD$1,517.51Current price is: CAD$1,517.51.Add to cart | View productFC-10-YAKG4-314-02-36 Original price was: CAD$5,584.40.CAD$4,455.64Current price is: CAD$4,455.64.Add to cart | View productFC-10-YAKG4-314-02-60 Original price was: CAD$9,307.33.CAD$7,426.07Current price is: CAD$7,426.07.Add to cart |
| FortiCare Premium 24×7 TAC, advanced hardware replacement & firmware updates. Most-purchased tier for new APs. | View productFC-10-YAKG4-247-02-12 Original price was: CAD$3,722.93.CAD$3,035.00Current price is: CAD$3,035.00.Add to cart | View productFC-10-YAKG4-247-02-36 Original price was: CAD$11,168.80.CAD$8,911.28Current price is: CAD$8,911.28.Add to cart | View productFC-10-YAKG4-247-02-60 Original price was: CAD$18,614.67.CAD$14,852.13Current price is: CAD$14,852.13.Add to cart |
FortiCare and subscriptions delivered electronically worldwide · prices shown live in your selected currency · add-to-cart enabled when in stock.
The FS-AX9000G-LC10S is the 10 gigabit fibre line card for the FortiSwitch AX9000G chassis family. Its 48 SFP+/SFP ports accept either 10 GE or 1 GE optics, which makes it the card to use where a mix of legacy gigabit fibre and 10 GE aggregation lands on the same chassis. Two further 10 GE SFP+ ports serve as uplinks.
Four LC10S cards in an FS-AX9004G give 200 ports of 10 GE in a single 11RU chassis — the densest 10 GE configuration in the AX9000G range. There is no Power over Ethernet on this card; for a powered access edge the LC10P provides multi-gigabit copper with 802.3bt instead.
One point to watch when ordering optics: the 48 primary ports take 1 GE SFP transceivers, but the two 10 GE SFP+ uplink ports do not. The card is hot swappable, fits both the FS-AX9004G and the FS-AX9008G, and occupies one line-card slot.
Ask AI about the FortiSwitch AX9000G-LC10SA quick guide to choosing the right AX9000G component.
| Line card | Ports | Speeds | PoE | |
|---|---|---|---|---|
| AX9000G-LC10P | 48× RJ45 + 2× SFP+ | 1/2.5/5/10 GE | 802.3bt, 4,320 W | View → |
| AX9000G-LC10S | 48× SFP+ + 2× SFP+ | 1/10 GE | — | Viewing |
| AX9000G-LC25 | 48× SFP28 + 4× QSFP28 | 10/25 GE + 40/100 GE | — | View → |
| AX9000G-LC100 | 32× QSFP28 | 40/100 GE | — | View → |
| AX9000G-LC400 | 8× QSFP-DD | 40/100/400 GE | — | View → |
All five line cards fit both the FS-AX9004G and the FS-AX9008G and occupy one line-card slot each. Only the LC10P has Power over Ethernet.
| Chassis compatibility | FS-AX9004G and FS-AX9008G — occupies 1 line-card slot |
| Access ports | 48× 10 GE SFP+ / 1 GE SFP |
| Uplink ports | 2× 10 GE SFP+ (1 GE SFP not supported) |
| PoE | None — data only |
| Maximum per chassis | 200× 10 GE ports (4× LC10S in an FS-AX9004G) |
| Packet buffers | 8 MB |
| Onboard storage | 20 GB SSD |
| Hot swap | Yes |
| Dimensions (H × D × W) | 49.0 × 496.2 × 436 mm (2.0 × 19.6 × 17.2 in) |
| Weight | 6.7 kg (14.8 lb) |
| Maximum power consumption | 321 W |
| Heat dissipation | 1,095.2 BTU/h |
Source: official Fortinet FortiSwitch-AX9000G Series datasheet, December 2025.
Every Fortinet purchase from DataCenter360.ca is backed by hands-on services across the full lifecycle — from rollout to round-the-clock protection.
Every part of the AX9000G family is ordered separately, so it is worth checking what fits where before you buy.
| Line card | Ports | Speeds | PoE | |
|---|---|---|---|---|
| AX9000G-LC10P | 48× RJ45 + 2× SFP+ | 1/2.5/5/10 GE | 802.3bt, 4,320 W | View → |
| AX9000G-LC10S | 48× SFP+ + 2× SFP+ | 1/10 GE | — | Viewing |
| AX9000G-LC25 | 48× SFP28 + 4× QSFP28 | 10/25 GE + 40/100 GE | — | View → |
| AX9000G-LC100 | 32× QSFP28 | 40/100 GE | — | View → |
| AX9000G-LC400 | 8× QSFP-DD | 40/100/400 GE | — | View → |
All five line cards fit both the FS-AX9004G and the FS-AX9008G and occupy one line-card slot each. Only the LC10P has Power over Ethernet.
The AX9000G family is two chassis, one supervisor module and five line cards, plus fan modules and power supplies. Everything is hot swappable.
Every AX9000G line card, side by side. Any combination fits either chassis.
Every available SKU for the FS-AX9000G-LC10S. In stock, brand new; support and licensing delivered electronically worldwide.
| Configuration | Price & action |
|---|---|
| FortiSwitch AX9000G-LC10S. Part of the FortiSwitch AX9000G modular chassis family. | View productFS-AX9000G-LC10S Original price was: CAD$39,090.80.CAD$26,901.19Current price is: CAD$26,901.19.Add to cart |
Brand-new, sealed · ships same / next business day · price shown live in your selected currency.
| Support | 1 Year | 3 Years | 5 Years |
|---|---|---|---|
| FortiCare Essential Renewal only — not sold with initial hardware purchase. | View productFC-10-YAKG4-314-02-12 Original price was: CAD$1,861.47.CAD$1,517.51Current price is: CAD$1,517.51.Add to cart | View productFC-10-YAKG4-314-02-36 Original price was: CAD$5,584.40.CAD$4,455.64Current price is: CAD$4,455.64.Add to cart | View productFC-10-YAKG4-314-02-60 Original price was: CAD$9,307.33.CAD$7,426.07Current price is: CAD$7,426.07.Add to cart |
| FortiCare Premium 24×7 TAC, advanced hardware replacement & firmware updates. Most-purchased tier for new APs. | View productFC-10-YAKG4-247-02-12 Original price was: CAD$3,722.93.CAD$3,035.00Current price is: CAD$3,035.00.Add to cart | View productFC-10-YAKG4-247-02-36 Original price was: CAD$11,168.80.CAD$8,911.28Current price is: CAD$8,911.28.Add to cart | View productFC-10-YAKG4-247-02-60 Original price was: CAD$18,614.67.CAD$14,852.13Current price is: CAD$14,852.13.Add to cart |
| FortiCare Elite Priority TAC queue, quarterly review & dedicated team. | View productFC-10-YAKG4-284-02-12 Original price was: CAD$5,584.40.CAD$4,455.64Current price is: CAD$4,455.64.Add to cart | View productFC-10-YAKG4-284-02-36 Original price was: CAD$16,753.20.CAD$13,366.92Current price is: CAD$13,366.92.Add to cart | View productFC-10-YAKG4-284-02-60 Original price was: CAD$27,922.00.CAD$22,278.19Current price is: CAD$22,278.19.Add to cart |
| FortiCare Premium → Elite Upgrade Step an existing FortiCare Premium contract up to Elite mid-term. | View productFC-10-YAKG4-204-02-12 Original price was: CAD$1,861.47.CAD$1,517.51Current price is: CAD$1,517.51.Add to cart | View productFC-10-YAKG4-204-02-36 Original price was: CAD$5,584.40.CAD$4,455.64Current price is: CAD$4,455.64.Add to cart | View productFC-10-YAKG4-204-02-60 Original price was: CAD$9,307.33.CAD$7,426.07Current price is: CAD$7,426.07.Add to cart |
| RMA | 1 Year | 3 Years | 5 Years |
|---|---|---|---|
| Next-Calendar-Day RMA Replacement unit dispatched the next calendar day. | View productFC-10-YAKG4-210-02-12 Original price was: CAD$1,861.47.CAD$1,517.51Current price is: CAD$1,517.51.Add to cart | View productFC-10-YAKG4-210-02-36 Original price was: CAD$5,584.40.CAD$4,455.64Current price is: CAD$4,455.64.Add to cart | View productFC-10-YAKG4-210-02-60 Original price was: CAD$9,307.33.CAD$7,426.07Current price is: CAD$7,426.07.Add to cart |
| 4-Hour Delivery RMA Advance replacement delivered within 4 hours. | View productFC-10-YAKG4-211-02-12 Original price was: CAD$4,467.52.CAD$3,642.00Current price is: CAD$3,642.00.Add to cart | View productFC-10-YAKG4-211-02-36 Original price was: CAD$13,402.56.CAD$10,693.53Current price is: CAD$10,693.53.Add to cart | View productFC-10-YAKG4-211-02-60 Original price was: CAD$22,337.60.CAD$17,822.55Current price is: CAD$17,822.55.Add to cart |
| 4-Hour Delivery + Onsite RMA 4-hour part plus a Fortinet onsite engineer dispatched. | View productFC-10-YAKG4-212-02-12 Original price was: CAD$8,190.45.CAD$6,534.93Current price is: CAD$6,534.93.Add to cart | View productFC-10-YAKG4-212-02-36 Original price was: CAD$24,571.36.CAD$19,604.81Current price is: CAD$19,604.81.Add to cart | View productFC-10-YAKG4-212-02-60 Original price was: CAD$40,952.27.CAD$32,674.68Current price is: CAD$32,674.68.Add to cart |
| Secure RMA Keep your failed unit — no return of the defective AP required. | View productFC-10-YAKG4-301-02-12 Original price was: CAD$2,792.20.CAD$2,276.25Current price is: CAD$2,276.25.Add to cart | View productFC-10-YAKG4-301-02-36 Original price was: CAD$8,376.60.CAD$6,683.46Current price is: CAD$6,683.46.Add to cart | View productFC-10-YAKG4-301-02-60 Original price was: CAD$13,961.00.CAD$11,139.10Current price is: CAD$11,139.10.Add to cart |
FortiCare and subscriptions delivered electronically worldwide · prices shown live in your selected currency · add-to-cart enabled when in stock.
The other parts you need to put this component into service.
A line card does not work on its own. It needs an AX9000G chassis with a supervisor module, fan modules and power supplies. The optics and cables below match this card's ports.
Media and power. The LC10S is 48 ports of SFP+/SFP fibre at 10 or 1 GE with no Power over Ethernet. The LC10P is 48 RJ45 copper ports at 1/2.5/5/10 GE with 802.3bt PoE up to 90 W per port. Both add two 10 GE SFP+ uplinks and both occupy one line-card slot.
The 48 primary ports do — they run at 10 GE or 1 GE, so existing gigabit fibre links keep working. The two dedicated 10 GE SFP+ uplink ports do not support 1 GE SFP. Worth checking before you order optics.
Two hundred. Four LC10S cards in an FS-AX9004G give 48 primary plus 2 uplink ports each, which is the densest 10 GE configuration in the AX9000G family. The eight-slot FS-AX9008G takes eight cards.
Yes. A line card does not work on its own — it needs an AX9004G or AX9008G chassis with at least one FS-AX9000G-SUP supervisor module, fan modules and power supplies. Ask us to quote the complete system if you are building a chassis from scratch.
No. The AX9000G family is managed through FortiSwitchNMS. Fortinet has stated that Security Fabric integration through FortiLink is planned for this platform, but it is not available today.
