Modular 11RU chassis switch for the data center, enterprise core and large campus. Four line-card slots take any mix of 10G, 25G, 100G and multi-gigabit PoE cards, with up to two supervisor modules for control and forwarding redundancy. 12.8 Tbps of Layer 2/3 switching, sub-4.3 microsecond latency, and hot-swappable line cards, fans and power supplies so the chassis stays up through maintenance. Managed with FortiSwitchNMS.
The configurations most customers buy: the chassis on its own, or with FortiCare support. The complete catalog is further down.
| Configuration | Price & action |
|---|---|
| FortiSwitch AX9004G 11RU modular chassis, up to four line cards. Supervisor module, line cards, fan modules and PSUs ordered separately. | View productFS-AX9004G Original price was: CAD$36,289.54.CAD$24,973.45Current price is: CAD$24,973.45.Add to cart |
Brand-new, sealed · ships same / next business day · price shown live in your selected currency.
| Support | 1 Year | 3 Years | 5 Years |
|---|---|---|---|
| FortiCare Essential Renewal only — not sold with initial hardware purchase. | View productFC-10-YAKG0-314-02-12 Original price was: CAD$1,600.02.CAD$1,304.37Current price is: CAD$1,304.37.Add to cart | View productFC-10-YAKG0-314-02-36 Original price was: CAD$4,800.07.CAD$3,913.11Current price is: CAD$3,913.11.Add to cart | View productFC-10-YAKG0-314-02-60 Original price was: CAD$8,000.12.CAD$6,383.07Current price is: CAD$6,383.07.Add to cart |
| FortiCare Premium 24×7 TAC, advanced hardware replacement & firmware updates. Most-purchased tier for new APs. | View productFC-10-YAKG0-247-02-12 Original price was: CAD$3,200.05.CAD$2,608.73Current price is: CAD$2,608.73.Add to cart | View productFC-10-YAKG0-247-02-36 Original price was: CAD$9,600.15.CAD$7,659.69Current price is: CAD$7,659.69.Add to cart | View productFC-10-YAKG0-247-02-60 Original price was: CAD$16,000.25.CAD$12,766.16Current price is: CAD$12,766.16.Add to cart |
FortiCare and subscriptions delivered electronically worldwide · prices shown live in your selected currency · add-to-cart enabled when in stock.
The FortiSwitch AX9004G is a modular chassis switch built for data centers, enterprise cores and large campus sites that need to scale a switch rather than replace it. Four line-card slots accept any combination of the AX9000G cards — 48-port multi-gigabit PoE, 48-port 10G SFP+, 48-port 25G with 100G uplinks, 32-port 100G, or 8-port 400G — so one chassis can serve a PoE access edge and a 100G core at the same time. Up to two supervisor modules provide control and forwarding redundancy, and every component (supervisor, line card, fan, power supply) is hot swappable, so capacity is added and faults are cleared without taking the chassis down.
The chassis ships empty. A working system is the AX9004G plus at least one FS-AX9000G-SUP supervisor module, at least one line card, three fan modules and the power supplies for your configuration. Fortinet requires three fan modules for normal operation regardless of how many cards are installed. Everything is ordered separately — the parts are listed further down this page, and we are happy to quote the complete system.
The AX9000G family is managed through FortiSwitchNMS, Fortinet's network management platform, which gives a single view of large multi-vendor estates. Fortinet has stated that Security Fabric integration through FortiLink is planned for this platform; it is not available today, so the AX9004G is not managed from a FortiGate the way the fixed-configuration FortiSwitch models are.
Ask AI about the FortiSwitch AX9004GA quick guide to choosing the right FortiSwitch chassis.
| Form factor | 11RU rack mount, modular chassis |
| Line-card slots | 4 — any combination of AX9000G line cards |
| Supervisor slots | Up to 2 (FS-AX9000G-SUP); at least one required |
| Fan modules | 3 required for normal operation, whatever the card count |
| Switching capacity (duplex) | 12.8 Tbps (25.6 Tbps with active-active supervisors — planned firmware) |
| Forwarding rate | 5,253 Mpps (1 supervisor, 4× LC100) |
| Network latency | < 4.3 µs |
| MAC address table | 256,000 |
| VLANs supported | 4,096 |
| Link aggregation | 16 ports per group, 192 groups; aggregation across line cards |
| Maximum 100G QSFP28 / 40G ports | 128 (4× FS-AX9000G-LC100) |
| Maximum 25G SFP28 / 10G ports | 192 (4× FS-AX9000G-LC25) |
| Maximum 10G SFP+ ports | 200 (4× FS-AX9000G-LC10S) |
| Maximum multi-gig BASE-T PoE ports | 192 (4× FS-AX9000G-LC10P) |
| PoE standard | 802.3af/at/bt type 4, on FS-AX9000G-LC10P line cards only |
| PoE power budget | 4,320 W per LC10P line card |
| Switching | Layer 2/3 — OSPF, BGP, RIP, RIPng, VRRP, ECMP, VRF, PIM-SM/SSM |
| Management | FortiSwitchNMS · 2× 10/100/1000BASE-T and 2× RJ45 console (on the supervisors) |
| Power supplies | Up to 8 hot-swappable, AC or DC |
| Power input | AC 100–240 V 50/60 Hz · DC −48 to −60 V |
| Maximum power consumption | 12.8 kW (AC 100–120 V) · 26.2 kW (AC 200–240 V) · 20.0 kW (DC) — depends on the supervisor and line-card configuration |
| Heat dissipation | 18,000 BTU/h at maximum configuration |
| Hot swap | Line cards, supervisors, power supplies and fan modules |
| Air flow | Front to back |
| Noise level | 75 dB (measured at 25°C) |
| Dimensions (H × D × W) | 485 × 600 × 441 mm (19.1 × 23.7 × 17.4 in) |
| Weight | 115 kg at maximum configuration |
| Operating temperature | 0°C to 40°C |
| Certifications | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
Source: official Fortinet FortiSwitch-AX9000G Series datasheet (FS-AX9004G column), December 2025. Capacity and power figures depend on the installed supervisor and line cards.
Every Fortinet purchase from DataCenter360.ca is backed by hands-on services across the full lifecycle — from rollout to round-the-clock protection.
The AX9000G comes as two chassis. The AX9004G takes four line cards in 11RU; the AX9008G takes eight. Both accept the same supervisor modules and the same line cards, so the choice is about how much you expect to grow, not about capability.
| Model | Line-card slots | Supervisor slots | |
|---|---|---|---|
| FortiSwitch AX9004G | 4 | Up to 2 | Viewing |
| FortiSwitch AX9008G | 8 | Up to 2 | View → |
Both chassis take the same supervisor modules and line cards. The 8-slot AX9008G uses its own fan module (FS-AX9008G-FAN); the 4-slot AX9004G uses FS-AX9004G-FAN. Power supplies are shared across both.

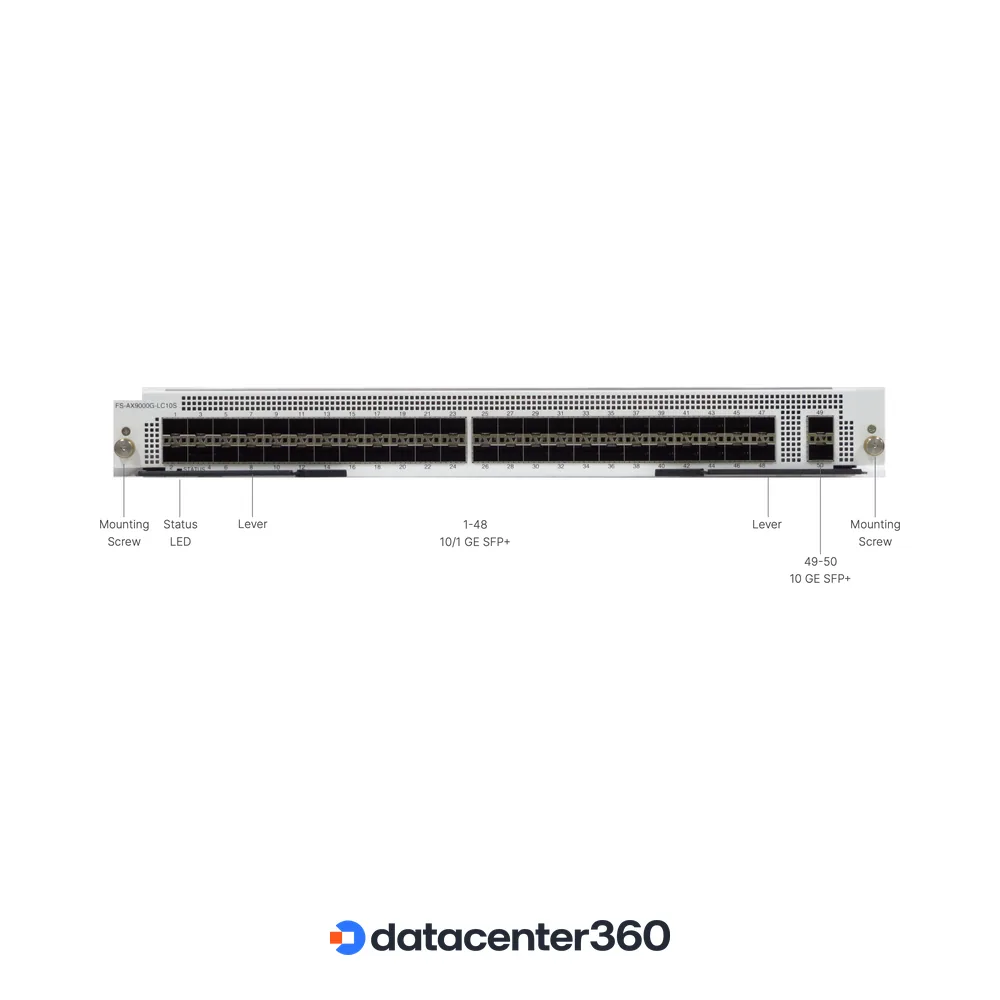

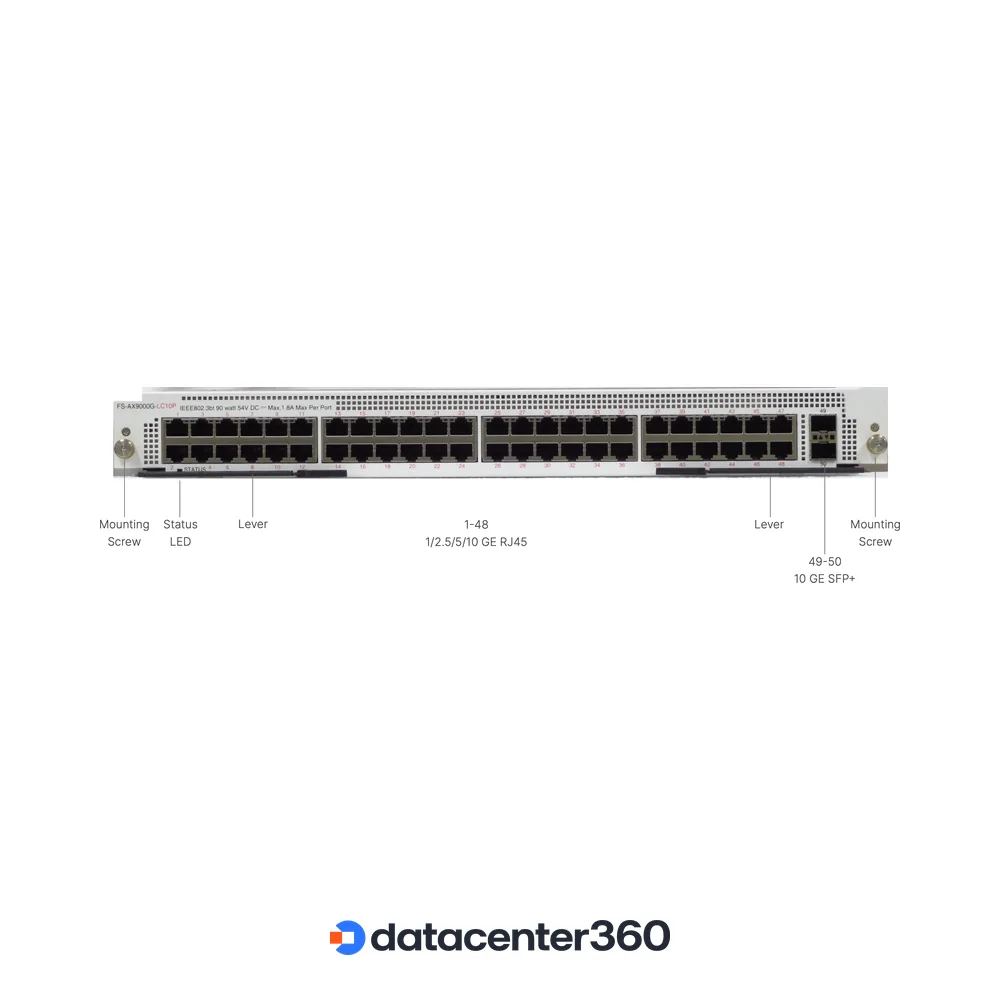

Five line cards fit the AX9004G’s four slots, in any combination — multi-gigabit 802.3bt PoE, 10G SFP+, 25G with 100G uplinks, 32-port 100G, and 8-port 400G. Cards are hot swappable, so you can start with one and fill the chassis later without downtime.
Any combination of these five line cards fits the AX9004G's four slots.
Every available SKU for the FS-AX9004G: chassis hardware, FortiCare support and RMA services. In stock, brand new; support and licensing delivered electronically worldwide.
| Configuration | Price & action |
|---|---|
| FortiSwitch AX9004G 11RU modular chassis, up to four line cards. Supervisor module, line cards, fan modules and PSUs ordered separately. | View productFS-AX9004G Original price was: CAD$36,289.54.CAD$24,973.45Current price is: CAD$24,973.45.Add to cart |
Brand-new, sealed · ships same / next business day · price shown live in your selected currency.
| Support | 1 Year | 3 Years | 5 Years |
|---|---|---|---|
| FortiCare Essential Renewal only — not sold with initial hardware purchase. | View productFC-10-YAKG0-314-02-12 Original price was: CAD$1,600.02.CAD$1,304.37Current price is: CAD$1,304.37.Add to cart | View productFC-10-YAKG0-314-02-36 Original price was: CAD$4,800.07.CAD$3,913.11Current price is: CAD$3,913.11.Add to cart | View productFC-10-YAKG0-314-02-60 Original price was: CAD$8,000.12.CAD$6,383.07Current price is: CAD$6,383.07.Add to cart |
| FortiCare Premium 24×7 TAC, advanced hardware replacement & firmware updates. Most-purchased tier for new APs. | View productFC-10-YAKG0-247-02-12 Original price was: CAD$3,200.05.CAD$2,608.73Current price is: CAD$2,608.73.Add to cart | View productFC-10-YAKG0-247-02-36 Original price was: CAD$9,600.15.CAD$7,659.69Current price is: CAD$7,659.69.Add to cart | View productFC-10-YAKG0-247-02-60 Original price was: CAD$16,000.25.CAD$12,766.16Current price is: CAD$12,766.16.Add to cart |
| FortiCare Elite Priority TAC queue, quarterly review & dedicated team. | View productFC-10-YAKG0-284-02-12 Original price was: CAD$4,800.07.CAD$3,913.11Current price is: CAD$3,913.11.Add to cart | View productFC-10-YAKG0-284-02-36 Original price was: CAD$14,400.22.CAD$11,489.54Current price is: CAD$11,489.54.Add to cart | View productFC-10-YAKG0-284-02-60 Original price was: CAD$24,000.37.CAD$19,149.24Current price is: CAD$19,149.24.Add to cart |
| FortiCare Premium → Elite Upgrade Step an existing FortiCare Premium contract up to Elite mid-term. | View productFC-10-YAKG0-204-02-12 Original price was: CAD$1,600.02.CAD$1,304.37Current price is: CAD$1,304.37.Add to cart | View productFC-10-YAKG0-204-02-36 Original price was: CAD$4,800.07.CAD$3,913.11Current price is: CAD$3,913.11.Add to cart | View productFC-10-YAKG0-204-02-60 Original price was: CAD$8,000.12.CAD$6,383.07Current price is: CAD$6,383.07.Add to cart |
| RMA | 1 Year | 3 Years | 5 Years |
|---|---|---|---|
| Next-Calendar-Day RMA Replacement unit dispatched the next calendar day. | View productFC-10-YAKG0-210-02-12 Original price was: CAD$1,600.02.CAD$1,304.37Current price is: CAD$1,304.37.Add to cart | View productFC-10-YAKG0-210-02-36 Original price was: CAD$4,800.07.CAD$3,913.11Current price is: CAD$3,913.11.Add to cart | View productFC-10-YAKG0-210-02-60 Original price was: CAD$8,000.12.CAD$6,383.07Current price is: CAD$6,383.07.Add to cart |
| 4-Hour Delivery RMA Advance replacement delivered within 4 hours. | View productFC-10-YAKG0-211-02-12 Original price was: CAD$3,840.06.CAD$3,130.49Current price is: CAD$3,130.49.Add to cart | View productFC-10-YAKG0-211-02-36 Original price was: CAD$11,520.18.CAD$9,191.63Current price is: CAD$9,191.63.Add to cart | View productFC-10-YAKG0-211-02-60 Original price was: CAD$19,200.30.CAD$15,319.38Current price is: CAD$15,319.38.Add to cart |
| 4-Hour Delivery + Onsite RMA 4-hour part plus a Fortinet onsite engineer dispatched. | View productFC-10-YAKG0-212-02-12 Original price was: CAD$7,040.11.CAD$5,617.11Current price is: CAD$5,617.11.Add to cart | View productFC-10-YAKG0-212-02-36 Original price was: CAD$21,120.33.CAD$16,851.32Current price is: CAD$16,851.32.Add to cart | View productFC-10-YAKG0-212-02-60 Original price was: CAD$35,200.54.CAD$28,085.55Current price is: CAD$28,085.55.Add to cart |
| Secure RMA Keep your failed unit — no return of the defective AP required. | View productFC-10-YAKG0-301-02-12 Original price was: CAD$2,400.04.CAD$1,956.55Current price is: CAD$1,956.55.Add to cart | View productFC-10-YAKG0-301-02-36 Original price was: CAD$7,200.11.CAD$5,744.77Current price is: CAD$5,744.77.Add to cart | View productFC-10-YAKG0-301-02-60 Original price was: CAD$12,000.19.CAD$9,574.62Current price is: CAD$9,574.62.Add to cart |
FortiCare and subscriptions delivered electronically worldwide · prices shown live in your selected currency · add-to-cart enabled when in stock.
A chassis on its own does not switch traffic. These are the parts an AX9004G needs before it goes into service.

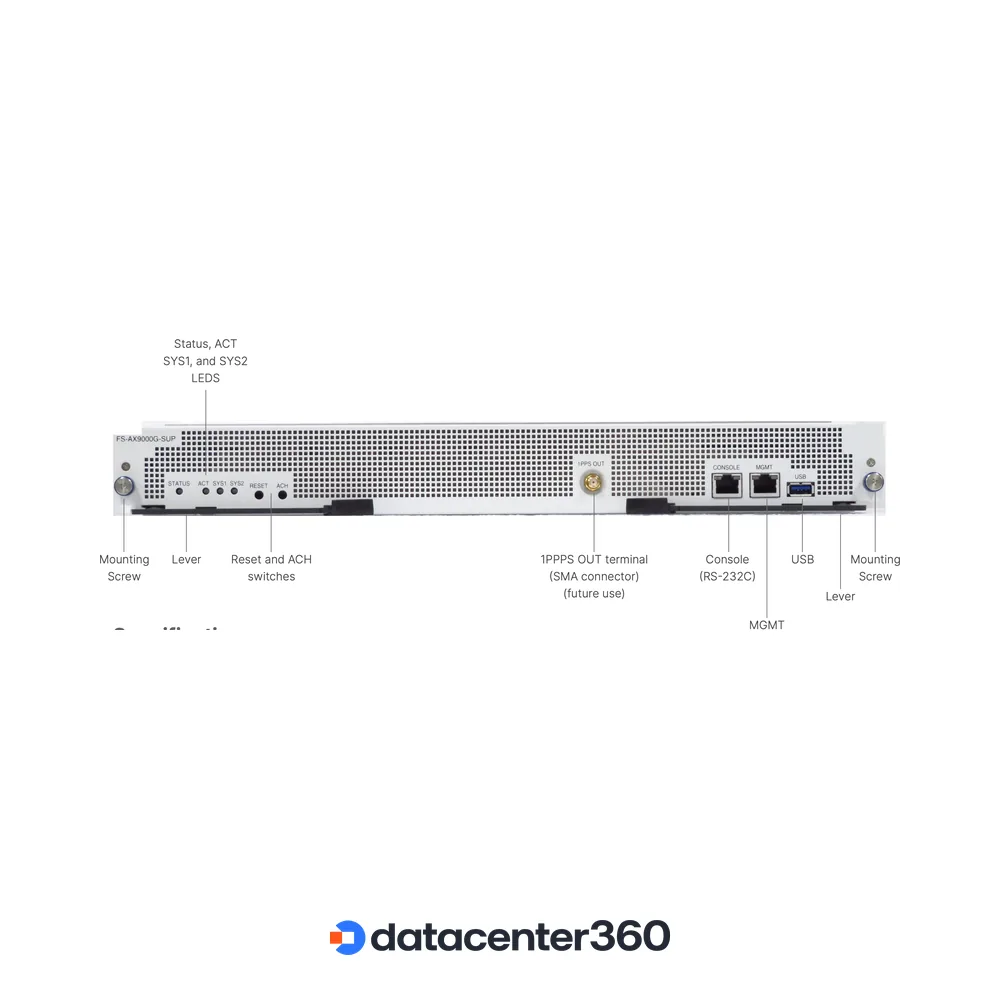

Required to complete the system. The AX9004G chassis ships empty: it needs one or two supervisor modules, at least one line card, three fan modules and the power supplies for your configuration.
The AX9004G chassis ships empty. A working system needs the chassis, at least one FS-AX9000G-SUP supervisor module, at least one line card, three fan modules (FS-AX9004G-FAN) and the power supplies for your configuration. Fortinet requires three fan modules for normal operation regardless of how many supervisors and line cards are installed. All of these are ordered separately — send us your requirements and we will quote the complete system.
Not today. The AX9000G series is managed through FortiSwitchNMS, Fortinet’s network management platform. Fortinet has stated that Security Fabric integration through FortiLink is planned for this platform, but it is not available at present, so the AX9004G is not managed from a FortiGate the way fixed-configuration FortiSwitch access, campus and data-center models are.
Four, in any combination. You can run a 48-port multi-gigabit PoE card (LC10P) alongside a 32-port 100G card (LC100) in the same chassis, so one switch can serve a PoE access edge and a high-speed core. Line cards are hot swappable, so slots can be filled later without taking the chassis down. Step up to the AX9008G if you need eight slots.
12.8 Tbps duplex with one supervisor module, and 5,253 Mpps forwarding with one supervisor and four LC100 cards. Latency is under 4.3 microseconds and the MAC address table holds 256,000 entries. Fortinet lists 25.6 Tbps with active-active supervisors as a planned firmware capability, not something available today.
Yes. Hardware ships free within Canada and is dispatched from stock, usually the same or next business day. Because a chassis order is normally several line items, we recommend asking us to quote the complete system so nothing is missed. FortiCare support and FortiSwitchNMS licensing are delivered electronically, worldwide. We are an authorized Fortinet Select Partner.
