End-of-order Wi-Fi 6E indoor access point with three radios across the 2.4, 5 and 6 GHz bands, 2x2 MU-MIMO, a 2.5 Gigabit Ethernet uplink and 802.3at PoE. Still sold from remaining stock where available and fully supported and renewable through 2030; for new deployments the direct successor is the Wi-Fi 7 FortiAP 231K.
The FortiAP 233G hardware is end-of-order. FortiCare support and subscription renewals remain in stock and are listed below.
Item | SKU | Price | ||
|---|---|---|---|---|
 | FC-10-PG233-595-02-12 | List price:CAD$245.21 Our Price:CAD$197.75 | ||
| | FC-10-PG233-595-02-36 | List price:CAD$736.34 Our Price:CAD$606.28 | ||
| | FC-10-PG233-595-02-60 | List price:CAD$1,226.75 Our Price:CAD$1,010.47 | ||
 | FC-10-PG233-247-02-12 | List price:CAD$70.06 Our Price:CAD$65.68 | ||
| | FC-10-PG233-247-02-36 | List price:CAD$210.18 Our Price:CAD$174.18 | ||
| | FC-10-PG233-247-02-60 | List price:CAD$350.30 Our Price:CAD$290.30 | ||
| | FC-10-PG233-284-02-12 | List price:CAD$105.09 Our Price:CAD$98.53 | ||
| | FC-10-PG233-284-02-36 | List price:CAD$315.98 Our Price:CAD$261.26 | ||
| | FC-10-PG233-284-02-60 | List price:CAD$526.16 Our Price:CAD$435.45 | ||
| | FC-10-PG233-204-02-12 | List price:CAD$35.03 Our Price:CAD$32.84 |

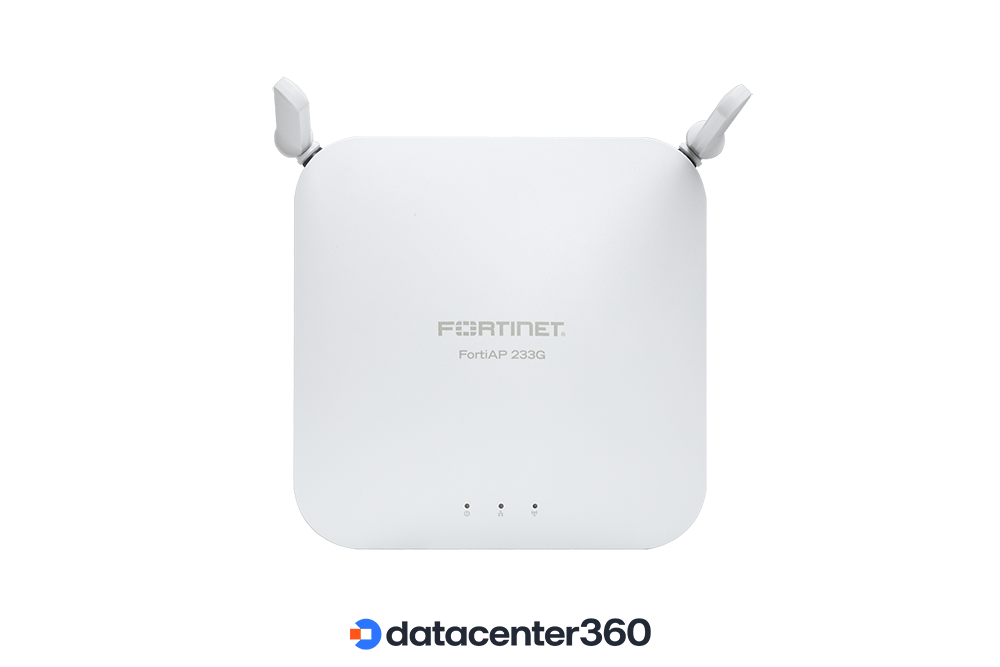

The FortiAP 233G is a Wi-Fi 6E (802.11ax) indoor access point with a tri-radio design that adds the clean 6 GHz band to the usual 2.4 and 5 GHz radios, giving 2x2 client connections more room and less interference. It is managed directly by any FortiGate or by FortiEdge Cloud, with no separate controller and no per-AP management license. The 233G reached end of order on 29 June 2025 and is now sold from remaining stock; Fortinet continues support, firmware and FortiCare renewals through 2030, so existing fleets are fully protected. For new rollouts the direct replacement is the Wi-Fi 7 FortiAP 231K, which keeps the same 2x2 indoor form factor and adds 4096-QAM and wider 6 GHz channels. The outdoor/ruggedized sibling of this radio is the FortiAP 234G.
The 233-class radio is legacy – here is how to renew what you own or move to its Wi-Fi 7 successor.
| Lifecycle | End of order 29 Jun 2025 · end of support 29 Jun 2030 (renewable) |
| Type | Indoor access point, Wi-Fi 6E (802.11ax), tri-band 2.4 / 5 / 6 GHz |
| Radios | 3 + BLE/Zigbee: 2.4 GHz, 5 GHz, 6 GHz (or dual 5 GHz) + continuous scanning |
| Spatial streams | 2x2 MU-MIMO per radio, OFDMA, BSS coloring, TWT |
| Max data rate | 574 Mbps (2.4 GHz) + 1201 Mbps (5 GHz) + 2402 Mbps (6 GHz), ~4.2 Gbps aggregate |
| Channel width | Up to 160 MHz (6 GHz); 80 MHz (5 GHz); 40 MHz (2.4 GHz) |
| Antennas | Internal omnidirectional (2x2 per band) + BLE / Zigbee |
| Ethernet | 1x 100M/1G/2.5G Base-T RJ45 + 1x 10/100/1000 Base-T RJ45 (PoE diversity) |
| Power over Ethernet | 802.3at |
| Client capacity | Up to 512 clients per serving radio |
| Security | WPA3 / WPA2 / WPA, 802.1X, captive portal, WIPS / WIDS, dedicated scan |
| UTP capable | Yes |
| Location / IoT | Integrated BLE and Zigbee for beacons and locationing |
| Management | FortiGate built-in WLAN controller or FortiEdge Cloud |
Source: official Fortinet FortiAP Series datasheet (FAP-233G column).
Download the full datasheetHow the FortiAP 233G lines up against its current-generation replacements.
The FortiAP 233G is end-of-order. Its direct successor, the FortiAP 231K, keeps the same form factor and moves to Wi-Fi 7.
In-stock FortiCare support and subscription renewals for the FAP-233G: Premium, Elite, Premium-to-Elite upgrade and FortiSASE Cloud. Delivered electronically, worldwide. New hardware is end-of-order – see the FortiAP 231K for current stock.
Item | SKU | Price | ||
|---|---|---|---|---|
| | FC-10-PG233-595-02-12 | List price:CAD$245.21 Our Price:CAD$197.75 | ||
| | FC-10-PG233-595-02-36 | List price:CAD$736.34 Our Price:CAD$606.28 | ||
| | FC-10-PG233-595-02-60 | List price:CAD$1,226.75 Our Price:CAD$1,010.47 | ||
| | FC-10-PG233-247-02-12 | List price:CAD$70.06 Our Price:CAD$65.68 | ||
| | FC-10-PG233-247-02-36 | List price:CAD$210.18 Our Price:CAD$174.18 | ||
| | FC-10-PG233-247-02-60 | List price:CAD$350.30 Our Price:CAD$290.30 | ||
| | FC-10-PG233-284-02-12 | List price:CAD$105.09 Our Price:CAD$98.53 | ||
| | FC-10-PG233-284-02-36 | List price:CAD$315.98 Our Price:CAD$261.26 | ||
| | FC-10-PG233-284-02-60 | List price:CAD$526.16 Our Price:CAD$435.45 | ||
| | FC-10-PG233-204-02-12 | List price:CAD$35.03 Our Price:CAD$32.84 |
Power and mount the FortiAP 233G.
The FortiAP 233G reached end of order on 29 June 2025 and is classified as legacy. Hardware is sold only from remaining stock, but Fortinet continues firmware, security updates and FortiCare support through 29 June 2030, so existing deployments remain fully protected and renewable.
The direct successor is the Wi-Fi 7 FortiAP 231K – same 2×2 indoor form factor, with 4096-QAM, wider 6 GHz channels and a higher aggregate rate. The FortiAP 231G is a close Wi-Fi 6E alternative, and the 234G is the outdoor/ruggedized version of the same radio.
It is a tri-radio Wi-Fi 6E (802.11ax) AP with 2×2 MU-MIMO on each band, reaching 574 Mbps on 2.4 GHz, 1201 Mbps on 5 GHz and 2402 Mbps on 6 GHz – about 4.2 Gbps aggregate – with up to 512 clients per serving radio.
It uses 802.3at PoE over its 2.5 Gigabit Ethernet uplink, with a second Gigabit port for PoE diversity. The GPI-130 injector or the SP-FAP200-PA adapter are listed power options.
Yes. FortiCare Premium and Elite support and FortiSASE Cloud subscriptions are in stock as one-year renewals and are delivered electronically, worldwide. We are an authorized Fortinet Select Partner.
